R5F21112DFP#U0 - Renesas Electronics

Description: 16-bit Microcontrollers - MCU MCU 3/5V 8K I-Temp Pb-Free 32-LQFP

Download R5F21112DFP#U0 Model

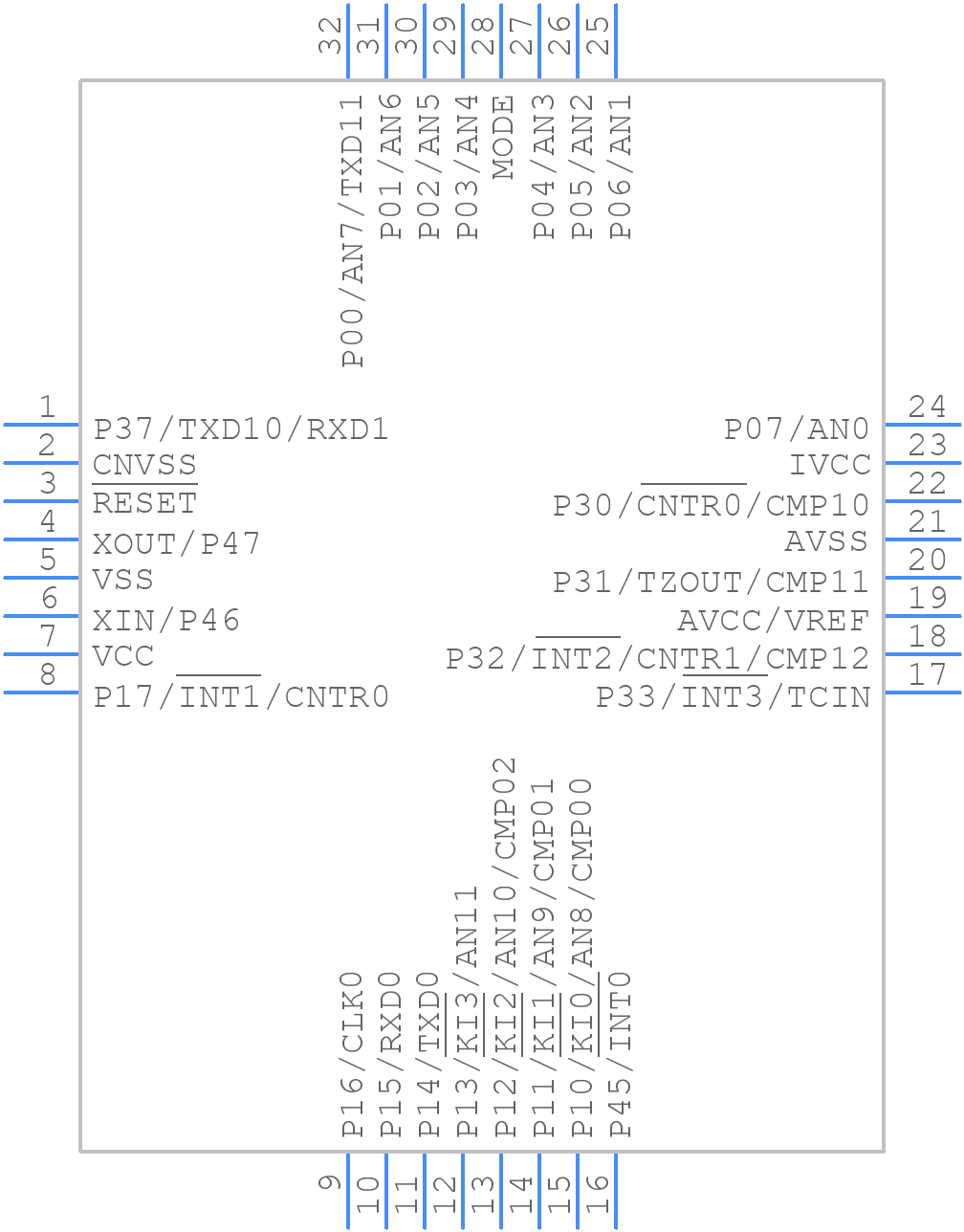

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
R5F21112DFP#U0 - Renesas Electronics PCB footprint - Quad Flat Packages - Quad Flat Packages - PLQP0032GB-A
click to zoom
3D Models
R5F21112DFP#U0 - Renesas Electronics  - 3D model - Quad Flat Packages - PLQP0032GB-A
click to zoom

R5F21112DFP#U0 Details

  • Manufacturer Part Number:

    R5F21112DFP#U0

  • Pbfree Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Package Description:

    LQFP-32

  • HTS Code:

    8542.31.00.20

  • Factory Lead Time:

    4 Weeks

  • Manufacturer:

    Renesas Electronics Corporation

  • YTEOL:

    0

  • Has ADC:

    YES

  • Bit Size:

    16

  • Clock Frequency-Max:

    10 MHz

  • DMA Channels:

    NO

  • Length:

    7 mm

  • Number of I/O Lines:

    24

  • Number of Terminals:

    32

  • PWM Channels:

    NO

  • Package Code:

    LQFP

  • Package Shape:

    SQUARE

  • Package Style:

    FLATPACK, LOW PROFILE

  • Speed:

    20 MHz

  • Supply Voltage-Max:

    5.5 V

  • Supply Voltage-Min:

    3 V

  • Supply Voltage-Nom:

    5 V

  • Surface Mount:

    YES

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.8 mm

  • Terminal Position:

    QUAD

  • Width:

    7 mm

  • uPs/uCs/Peripheral ICs Type:

    MICROCONTROLLER
