R5F21142SP#U0 - Renesas Electronics

Description: 16-bit Microcontrollers - MCU MCU 3/5V 8K Pb-Free 20-SSOP

Download R5F21142SP#U0 Model

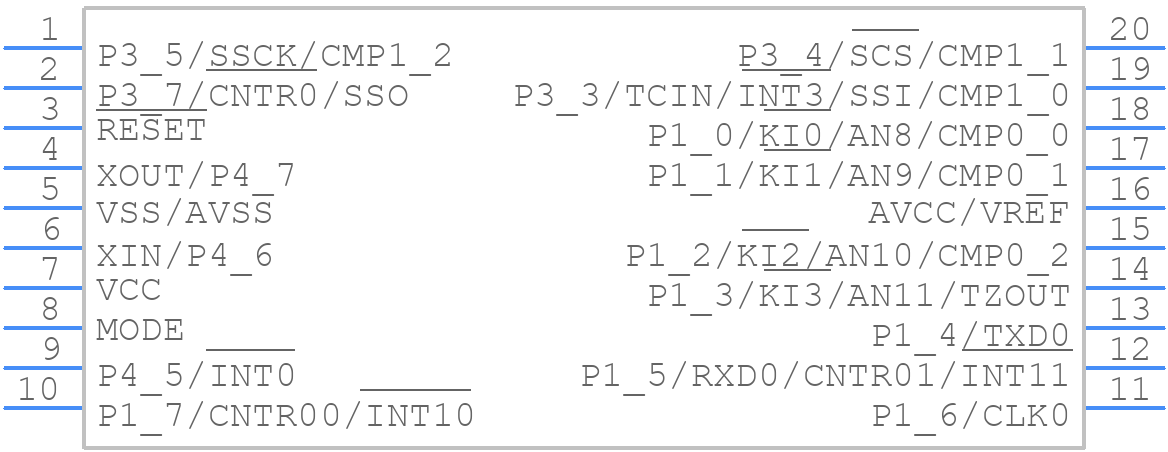

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
R5F21142SP#U0 - Renesas Electronics PCB footprint - Small Outline Packages - Small Outline Packages - P-LSSOP20-4.4x6.5-0.65
click to zoom
3D Models
R5F21142SP#U0 - Renesas Electronics  - 3D model - Small Outline Packages - P-LSSOP20-4.4x6.5-0.65
click to zoom

R5F21142SP#U0 Details

  • Manufacturer Part Number:

    R5F21142SP#U0

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    SSOP

  • Package Description:

    LSSOP-20

  • Pin Count:

    20

  • HTS Code:

    8542.31.00.20

  • Factory Lead Time:

    52 Weeks

  • Manufacturer:

    Renesas Electronics Corporation

  • YTEOL:

    0

  • Has ADC:

    YES

  • Bit Size:

    16

  • Clock Frequency-Max:

    20 MHz

  • DMA Channels:

    NO

  • Length:

    6.5 mm

  • Number of I/O Lines:

    15

  • Number of Terminals:

    20

  • PWM Channels:

    NO

  • Package Code:

    LSSOP

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, LOW PROFILE, SHRINK PITCH

  • Speed:

    20 MHz

  • Supply Voltage-Max:

    5.5 V

  • Supply Voltage-Min:

    3 V

  • Supply Voltage-Nom:

    5 V

  • Surface Mount:

    YES

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Width:

    4.4 mm

  • uPs/uCs/Peripheral ICs Type:

    MICROCONTROLLER

R5F21142SP#U0 Frequently Asked Questions (FAQs)

  • The recommended power-on sequence is to apply VCC first, followed by VDD, and then the clock signal. This ensures that the internal voltage regulators and clock circuitry are properly initialized.
  • The clock settings can be configured using the Clock Control Register (CKCR) and the Clock Source Select Register (CSSR). Refer to the user manual for detailed information on clock configuration and settings.
  • The maximum operating frequency of the R5F21142SP is 32 MHz, but it can be overclocked up to 40 MHz with reduced voltage and temperature ranges.
  • The R5F21142SP has a built-in watchdog timer that can be enabled and configured using the Watchdog Timer Control Register (WTCR) and the Watchdog Timer Counter Register (WTCCR). Refer to the user manual for detailed information on watchdog timer implementation.
  • The minimum operating temperature range for the R5F21142SP is -40°C, and the maximum operating temperature range is 85°C.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

R5F21142SP#U0 Overview

Use the download button to access the R5F21142SP#U0 schematic symbol, PCB footprint, and 3D model.
