R5F211B3SP#U0 - Renesas Electronics

Description: The R8C/1B Group is supported only for customers who have already adopted these products. The RL78/G12 Group is recommended for new designs.These MCUs are fabricated using the high-performance silicon gate CMOS process, embedding the R8C/ Tiny Series CPU core, and is packaged in a 20-pin molded-plastic LSSOP, SDIP or a 28-pin plastic molded HWQFN. It implements sophisticated instructions for a high level of instruction efficiency. With 1Mb of address space, they are capable of executing instructions at high

Download R5F211B3SP#U0 Model

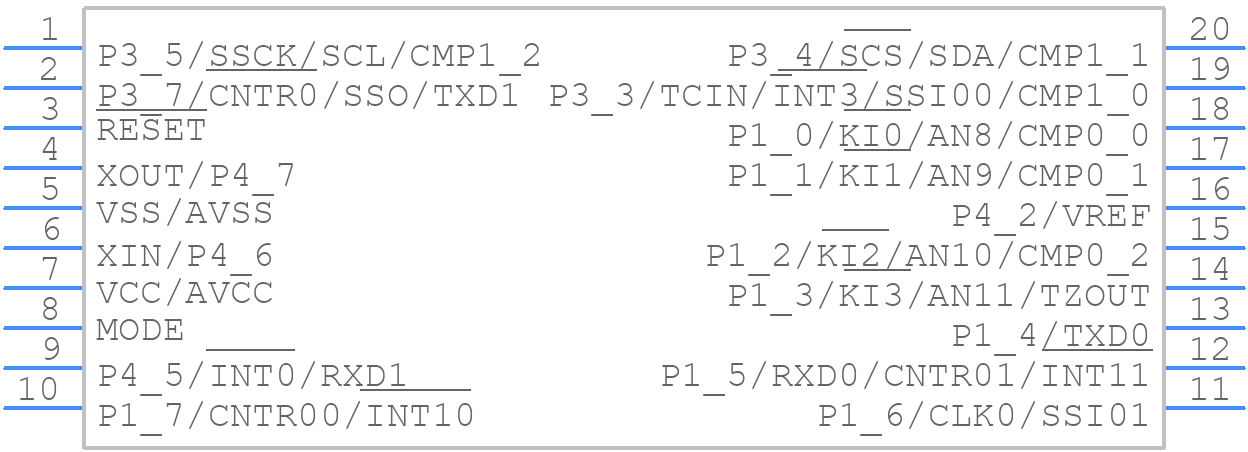

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
R5F211B3SP#U0 - Renesas Electronics PCB footprint - Small Outline Packages - Small Outline Packages - PLSP0020JB-A
click to zoom
3D Models
R5F211B3SP#U0 - Renesas Electronics  - 3D model - Small Outline Packages - PLSP0020JB-A
click to zoom

R5F211B3SP#U0 Details

  • Manufacturer Part Number:

    R5F211B3SP#U0

  • Brand Name:

    Renesas

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    LSSOP

  • Package Description:

    4.40 X 6.50 MM, 0.65 MM PITCH, PLASTIC, LSSOP-20

  • Pin Count:

    20

  • Manufacturer Package Code:

    PLSP0020JB

  • HTS Code:

    8542.31.00.20

  • Factory Lead Time:

    52 Weeks

  • Manufacturer:

    Renesas Electronics Corporation

  • YTEOL:

    0

  • Has ADC:

    YES

  • Additional Feature:

    IT ALSO OPERATES IN 2.7V AT 10MHZ

  • Bit Size:

    16

  • Boundary Scan:

    NO

  • CPU Family:

    R8C

  • Clock Frequency-Max:

    20 MHz

  • DAC Channels:

    NO

  • DMA Channels:

    NO

  • JESD-30 Code:

    R-PDSO-G20

  • Length:

    6.5 mm

  • Number of I/O Lines:

    16

  • Number of Terminals:

    20

  • On Chip Program ROM Width:

    8

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -20 °C

  • PWM Channels:

    NO

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    LSSOP

  • Package Equivalence Code:

    SSOP20,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, LOW PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    NOT SPECIFIED

  • Qualification Status:

    Not Qualified

  • RAM (bytes):

    768

  • ROM (words):

    12288

  • ROM Programmability:

    FLASH

  • Seated Height-Max:

    1.45 mm

  • Speed:

    20 MHz

  • Supply Voltage-Max:

    5.5 V

  • Supply Voltage-Min:

    4.5 V

  • Supply Voltage-Nom:

    5 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    OTHER

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    NOT SPECIFIED

  • Width:

    4.4 mm

  • uPs/uCs/Peripheral ICs Type:

    MICROCONTROLLER

R5F211B3SP#U0 Frequently Asked Questions (FAQs)

  • The recommended operating voltage range for the R5F211B3SP#U0 is 2.7V to 5.5V.
  • The clock settings for the R5F211B3SP#U0 can be configured using the Clock Generator (CG) module. The CG module allows you to select the clock source, set the clock frequency, and configure the clock dividers. Refer to the datasheet and the Renesas documentation for more information.
  • The maximum frequency of the R5F211B3SP#U0 is 32 MHz.
  • The R5F211B3SP#U0 has a 10-bit Analog-to-Digital Converter (ADC) with 16 channels. To use the ADC, you need to configure the ADC module, select the analog input channel, and start the conversion. The ADC result can be read from the ADC data register. Refer to the datasheet and the Renesas documentation for more information.
  • The watchdog timer on the R5F211B3SP#U0 is used to detect and recover from system failures or hangs. It can be configured to generate a reset signal if the system fails to refresh the watchdog timer within a specified time period.
