R5F211B4NP#U0 - Renesas Electronics

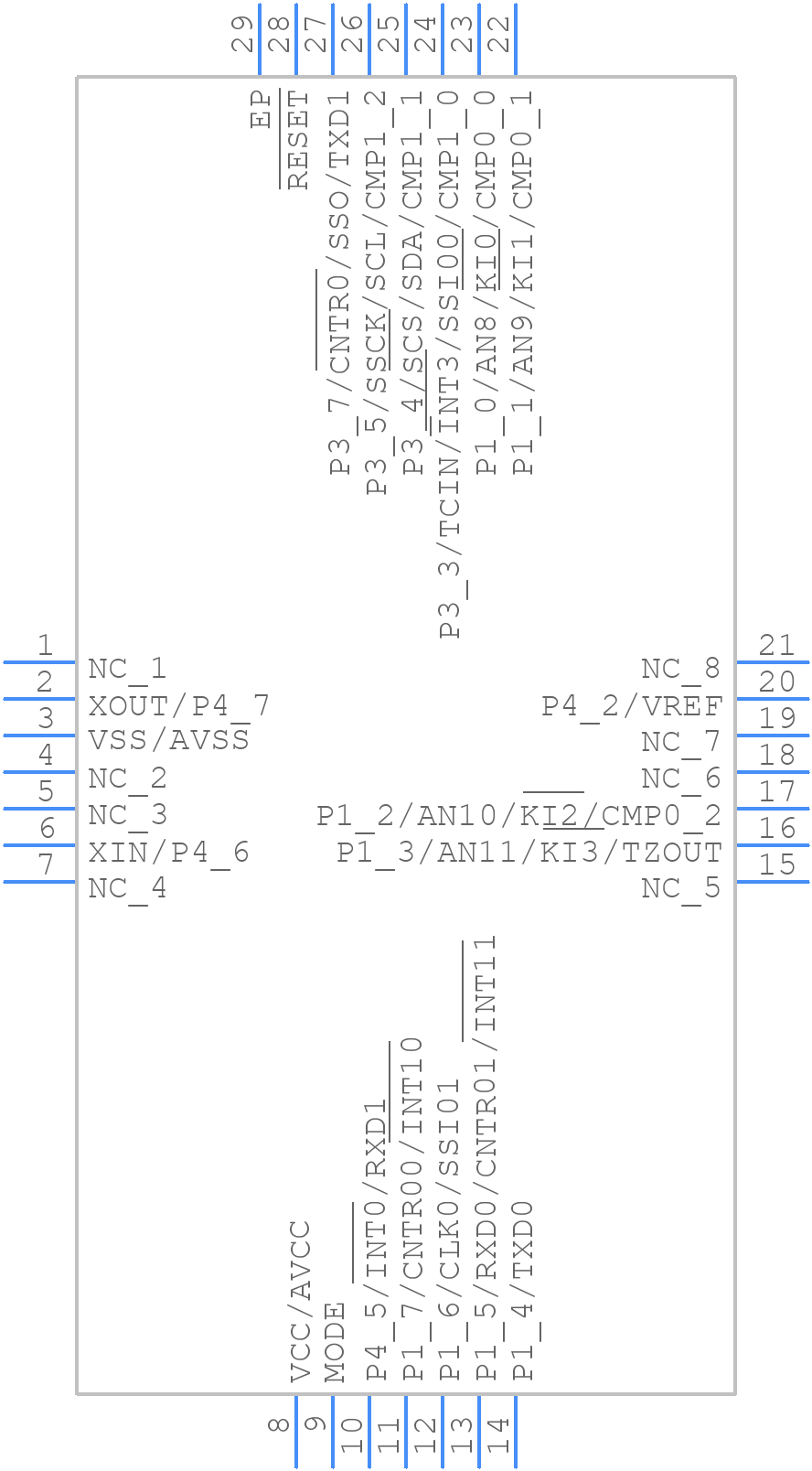

R5F211B4NP#U0 Details

• Manufacturer Part Number:

  R5F211B4NP#U0

• Brand Name:

  Renesas

• Pbfree Code:

  Yes

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Obsolete

• Part Package Code:

  HWQFN

• Package Description:

  HVQCCN, LCC28,.2SQ,20

• Pin Count:

  28

• Manufacturer Package Code:

  PWQN0028KA

• Reach Compliance Code:

  Compliant

• HTS Code:

  8542.31.00.20

• Factory Lead Time:

  4 Weeks

• Manufacturer:

  Renesas Electronics Corporation

• YTEOL:

  0

• Has ADC:

  YES

• Additional Feature:

  IT ALSO OPERATES IN 2.7V AT 10MHZ

• Bit Size:

  16

• Boundary Scan:

  NO

• CPU Family:

  R8C

• Clock Frequency-Max:

  20 MHz

• DAC Channels:

  NO

• DMA Channels:

  NO

• JESD-30 Code:

  S-PQCC-N28

• Length:

  5 mm

• Number of I/O Lines:

  16

• Number of Terminals:

  28

• On Chip Program ROM Width:

  8

• Operating Temperature-Max:

  85 °C

• Operating Temperature-Min:

  -20 °C

• PWM Channels:

  NO

• Package Body Material:

  PLASTIC/EPOXY

• Package Code:

  HVQCCN

• Package Equivalence Code:

  LCC28,.2SQ,20

• Package Shape:

  SQUARE

• Package Style:

  CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

• Peak Reflow Temperature (Cel):

  NOT SPECIFIED

• Qualification Status:

  Not Qualified

• RAM (bytes):

  1024

• ROM (words):

  16384

• ROM Programmability:

  FLASH

• Seated Height-Max:

  0.8 mm

• Speed:

  20 MHz

• Supply Voltage-Max:

  5.5 V

• Supply Voltage-Min:

  4.5 V

• Supply Voltage-Nom:

  5 V

• Surface Mount:

  YES

• Technology:

  CMOS

• Temperature Grade:

  OTHER

• Terminal Form:

  NO LEAD

• Terminal Pitch:

  0.5 mm

• Terminal Position:

  QUAD

• Time@Peak Reflow Temperature-Max (s):

  NOT SPECIFIED

• Width:

  5 mm

• uPs/uCs/Peripheral ICs Type:

  MICROCONTROLLER
