R5F21334DNFP#V2 - Renesas Electronics

Description: The R8C/33D Group is supported only for customers who have already adopted these products.The R8C/33D Group of single-chip MCUs incorporates the R8C CPU core, employing sophisticated instructions for a high level of efficiency. With 1Mb of address space, and it is capable of executing instructions at high speed. In addition, the CPU core boasts a multiplier for high-speed operation processing.Power consumption is low, and the supported operating modes allow additional power control. These MCUs are designed

Download R5F21334DNFP#V2 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

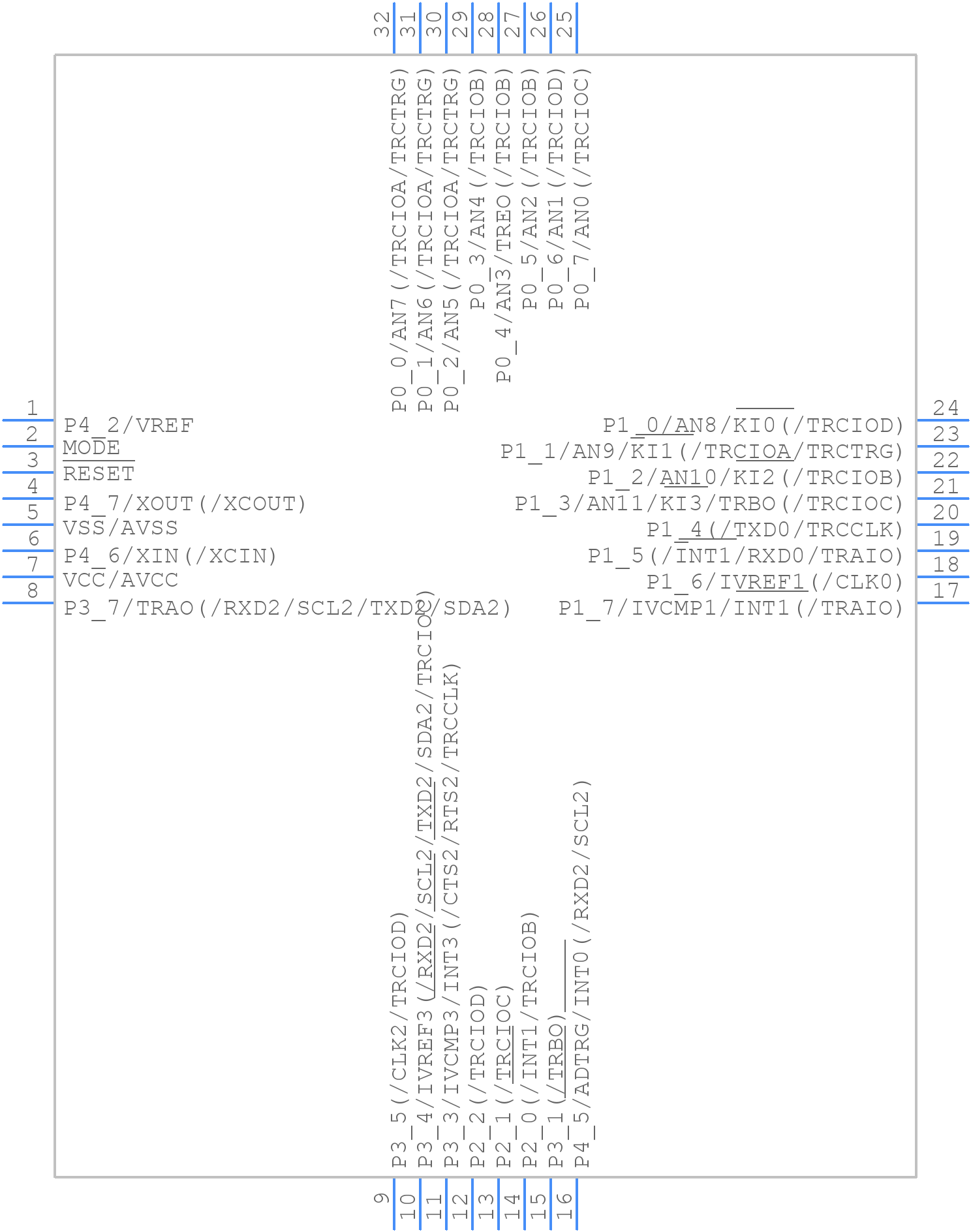

Symbol
R5F21334DNFP#V2 - Renesas Electronics - PCB symbol
click to zoom
PCB Footprints
R5F21334DNFP#V2 - Renesas Electronics PCB footprint - Quad Flat Packages - Quad Flat Packages - PLQP0032GB-A
click to zoom
3D Models
R5F21334DNFP#V2 - Renesas Electronics - 3D model - Quad Flat Packages - PLQP0032GB-A
click to zoom

R5F21334DNFP#V2 Details

  • Manufacturer Part Number:

    R5F21334DNFP#V2

  • Brand Name:

    Renesas

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    LQFP

  • Package Description:

    7 X 7 MM, 0.80 MM PITCH, PLASTIC, LQFP-32

  • Pin Count:

    32

  • Manufacturer Package Code:

    PLQP0032GB

  • HTS Code:

    8542.31.00.20

  • Manufacturer:

    Renesas Electronics Corporation

  • YTEOL:

    0

  • Has ADC:

    YES

  • Additional Feature:

    IT ALSO OPERATES IN 1.8V AT 5MHZ

  • Bit Size:

    16

  • Clock Frequency-Max:

    20 MHz

  • DAC Channels:

    NO

  • DMA Channels:

    NO

  • JESD-30 Code:

    S-PQFP-G32

  • Length:

    7 mm

  • Moisture Sensitivity Level:

    3

  • Number of I/O Lines:

    28

  • Number of Terminals:

    32

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -20 °C

  • PWM Channels:

    YES

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    LQFP

  • Package Shape:

    SQUARE

  • Package Style:

    FLATPACK, LOW PROFILE

  • ROM Programmability:

    FLASH

  • Seated Height-Max:

    1.7 mm

  • Speed:

    20 MHz

  • Supply Voltage-Max:

    5.5 V

  • Supply Voltage-Min:

    2.7 V

  • Supply Voltage-Nom:

    3.3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    OTHER

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.8 mm

  • Terminal Position:

    QUAD

  • Width:

    7 mm

  • uPs/uCs/Peripheral ICs Type:

    MICROCONTROLLER

R5F21334DNFP#V2 Frequently Asked Questions (FAQs)

  • The recommended power-on sequence is to apply VCC first, followed by VDD, and then the clock signal. This ensures that the internal voltage regulators and clock circuitry are properly initialized.
  • The clock settings can be configured using the Clock Control Register (CCR) and the Clock Source Select Register (CSSR). The CCR sets the clock frequency and the CSSR selects the clock source. Refer to the user manual for specific register settings and values.
  • The maximum operating temperature range for the R5F21334DNFP#V2 is -40°C to +125°C. However, it's recommended to operate within the industrial temperature range of -40°C to +85°C for optimal performance and reliability.
  • The R5F21334DNFP#V2 has a built-in watchdog timer (WDT) that can be enabled and configured using the Watchdog Timer Control Register (WTCR). The WDT can be set to reset the device or generate an interrupt if the timer expires.
  • The maximum current consumption of the R5F21334DNFP#V2 depends on the operating frequency, voltage, and peripheral usage. Refer to the datasheet for specific current consumption values under different operating conditions.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

R5F21334DNFP#V2 Overview

Use the download button to access the R5F21334DNFP#V2 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like R5F21, or try a keyword search, such as Microcontrollers
