Texas Instruments provides a recommended PCB layout in the datasheet, but it's essential to follow good PCB design practices, such as keeping the input and output traces short, using a solid ground plane, and minimizing noise coupling. Additionally, ensure the PCB material has a high thermal conductivity to dissipate heat efficiently.
The RCV420JPG4 has a high power density, so thermal management is crucial. Use a heat sink with a thermal conductivity of at least 1 W/m-K, and ensure good airflow around the device. You can also use thermal interface materials (TIMs) to improve heat transfer between the device and heat sink. Monitor the junction temperature (TJ) to prevent overheating.
Although the datasheet specifies a maximum input voltage of 42 V, it's recommended to derate the input voltage to 36 V to ensure reliable operation and prevent damage to the device. Exceeding the maximum input voltage can lead to reduced lifespan or even failure.
Choose an output capacitor with a low equivalent series resistance (ESR) and a high ripple current rating. A ceramic capacitor with an X7R or X5R dielectric is recommended. The output capacitor value should be at least 10 μF, but a larger value may be required depending on the specific application and output current requirements.
Use a high-quality, low-ESR input capacitor with a value of at least 10 μF. A ceramic capacitor with an X7R or X5R dielectric is suitable. The input capacitor should be placed close to the VIN pin to minimize noise and ensure stable operation.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
RCV420JPG4 Overview

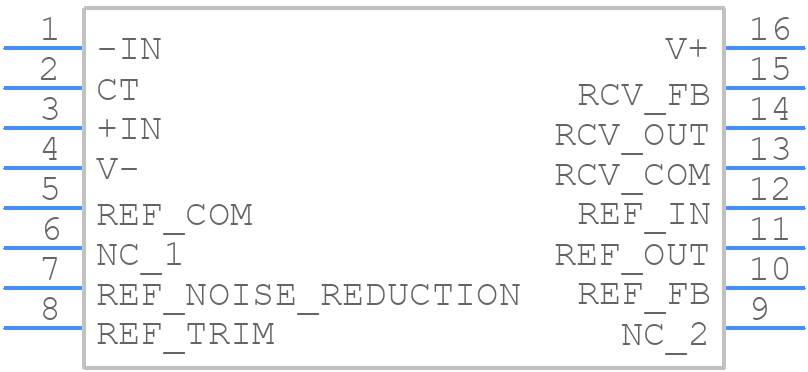

Use the download button to access the RCV420JPG4 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like RCV42,
or try a keyword search, such as Instrumentation Amplifiers
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
