REF01CSA+ - Analog Devices

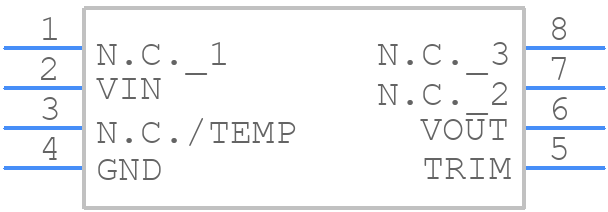

REF01CSA+ Details

• Manufacturer Part Number:

  REF01CSA+

• Brand Name:

  Analog Devices Inc

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Active

• Part Package Code:

  8-SOIC_N-150_MIL

• Package Description:

  0.150 INCH, ROHS COMPLIANT, SOIC-8

• Pin Count:

  8

• Manufacturer Package Code:

  8-SOIC_N-150_MIL

• Country Of Origin:

  Japan, Mainland China, Malaysia, Philippines, Singapore, South Korea, Taiwan, Thailand, USA

• ECCN Code:

  EAR99

• HTS Code:

  8542.39.00.60

• Date Of Intro:

  2000-05-03

• Manufacturer:

  Analog Devices Inc

• YTEOL:

  8.5

• Additional Feature:

  OUTPUT VOLTAGE ADJUSTABLE 3 PERCENT

• Analog IC - Other Type:

  THREE TERMINAL VOLTAGE REFERENCE

• JESD-30 Code:

  R-PDSO-G8

• JESD-609 Code:

  e3

• Length:

  4.9 mm

• Moisture Sensitivity Level:

  1

• Number of Functions:

  1

• Number of Outputs:

  1

• Number of Terminals:

  8

• Operating Temperature-Max:

  70 °C

• Output Voltage-Max:

  10.1 V

• Output Voltage-Min:

  9.9 V

• Output Voltage-Nom:

  10 V

• Package Body Material:

  PLASTIC/EPOXY

• Package Code:

  SOP

• Package Equivalence Code:

  SOP8,.25

• Package Shape:

  RECTANGULAR

• Package Style:

  SMALL OUTLINE

• Peak Reflow Temperature (Cel):

  260

• Qualification Status:

  Not Qualified

• Seated Height-Max:

  1.75 mm

• Supply Voltage-Max (Vsup):

  33 V

• Supply Voltage-Min (Vsup):

  13 V

• Supply Voltage-Nom (Vsup):

  15 V

• Surface Mount:

  YES

• Technology:

  BIPOLAR

• Temp Coef of Voltage-Max:

  65 ppm/°C

• Temperature Grade:

  COMMERCIAL

• Terminal Finish:

  Matte Tin (Sn)

• Terminal Form:

  GULL WING

• Terminal Pitch:

  1.27 mm

• Terminal Position:

  DUAL

• Time@Peak Reflow Temperature-Max (s):

  30

• Trim/Adjustable Output:

  YES

• Voltage Tolerance-Max:

  1%

• Width:

  3.9 mm
