OUTPUT CAN BE EXTERNALLY ADJUSTED OVER A +/-6 PERCENT RANGE
Analog IC - Other Type:
THREE TERMINAL VOLTAGE REFERENCE
JESD-30 Code:
R-PDIP-T8
JESD-609 Code:
e4
Length:
9.81 mm
Number of Functions:
1
Number of Outputs:
1
Number of Terminals:
8
Operating Temperature-Max:
85 °C
Operating Temperature-Min:
-40 °C
Output Voltage-Max:
5.01 V
Output Voltage-Min:
4.99 V
Output Voltage-Nom:
5 V
Package Body Material:
PLASTIC/EPOXY
Package Code:
DIP
Package Equivalence Code:
DIP8,.3
Package Shape:
RECTANGULAR
Package Style:
IN-LINE
Qualification Status:
Not Qualified
Seated Height-Max:
5.08 mm
Supply Voltage-Max (Vsup):
40 V
Supply Voltage-Min (Vsup):
8 V
Supply Voltage-Nom (Vsup):
15 V
Surface Mount:
NO
Technology:
BIPOLAR
Temp Coef of Voltage-Max:
10 ppm/°C
Temperature Grade:
INDUSTRIAL
Terminal Finish:
NICKEL PALLADIUM GOLD
Terminal Form:
THROUGH-HOLE
Terminal Pitch:
2.54 mm
Terminal Position:
DUAL
Trim/Adjustable Output:
YES
Voltage Tolerance-Max:
0.13%
Width:
7.62 mm
REF02BP Frequently Asked Questions (FAQs)
The REF02BP should be placed close to the analog-to-digital converter (ADC) or digital-to-analog converter (DAC) it is referencing, with a low-impedance path to the power supply. The input and output pins should be routed away from noisy digital signals, and a ground plane should be used to minimize noise coupling.
A 0.1 μF ceramic capacitor should be placed as close as possible to the REF02BP's input pin, and a 10 μF tantalum capacitor should be placed in parallel to filter out high-frequency noise. Additionally, a 1 μF ceramic capacitor can be placed on the output pin to filter out high-frequency noise.
The REF02BP's output voltage has a temperature coefficient of 10 ppm/°C. To compensate for temperature effects, a temperature sensor can be used to monitor the temperature and adjust the reference voltage accordingly. Alternatively, a thermistor can be used to create a temperature-compensated voltage reference.
The REF02BP requires a power supply voltage between 4.5 V and 36 V, with a recommended operating voltage of 5 V or 15 V. The power supply should be well-regulated and have a low noise floor to ensure accurate voltage reference. A voltage regulator, such as the TLV703, can be used to regulate the power supply voltage.
The REF02BP should be powered up and down slowly to prevent damage from inrush currents. A soft-start circuit can be used to limit the inrush current during power-up. Additionally, the input voltage should be ramped up and down slowly to prevent voltage spikes.
Trust Checks
This model has been verified by system checks.
System Verified
Sponsored
REF02BP Overview

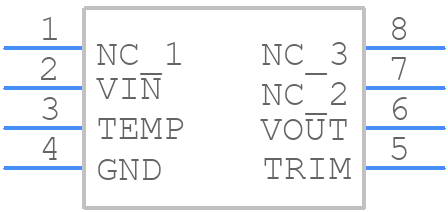

Use the download button to access the REF02BP schematic symbol, PCB footprint, and 3D model.
