REF1004C-2.5 - Texas Instruments

Description: Micropower Voltage Reference

Download REF1004C-2.5 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

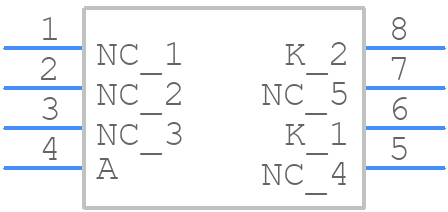

REF1004C-2.5 - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
REF1004C-2.5 - Texas Instruments PCB footprint - Small Outline Packages - Small Outline Packages - D0008A
click to zoom
3D Models
REF1004C-2.5 - Texas Instruments - 3D model - Small Outline Packages - D0008A
click to zoom

REF1004C-2.5 Details

  • Manufacturer Part Number:

    REF1004C-2.5

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    SOIC

  • Pin Count:

    8

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Analog IC - Other Type:

    TWO TERMINAL VOLTAGE REFERENCE

  • JESD-30 Code:

    R-PDSO-G8

  • JESD-609 Code:

    e4

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    1

  • Number of Outputs:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    70 °C

  • Output Voltage-Max:

    2.511 V

  • Output Voltage-Min:

    2.48 V

  • Output Voltage-Nom:

    2.5 V

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Surface Mount:

    YES

  • Temperature Grade:

    COMMERCIAL

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    GULL WING

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Trim/Adjustable Output:

    NO

  • Voltage Tolerance-Max:

    0.8%

REF1004C-2.5 Frequently Asked Questions (FAQs)

  • The recommended output capacitor value is 10uF to 22uF, but it can be adjusted based on the specific application and noise requirements.
  • To ensure stability, use a low-ESR output capacitor, keep the output capacitor close to the device, and avoid using long traces or wires that can cause oscillations.
  • The maximum current that can be drawn from the REF1004C-2.5 is 10mA, but it's recommended to keep the current below 5mA for optimal performance and stability.
  • The REF1004C-2.5 has a soft-start feature that prevents output voltage overshoot during power-up, and it also has a built-in power-down feature that reduces current consumption to near zero when the input voltage is removed.
  • Yes, the REF1004C-2.5 is rated for operation up to 125°C, but the output voltage accuracy and stability may degrade at higher temperatures. It's recommended to consult the datasheet and application notes for specific guidance on high-temperature operation.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

REF1004C-2.5 Overview

Use the download button to access the REF1004C-2.5 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like REF10, or try a keyword search, such as Voltage References
