REF1004I-1.2/2K5 - Texas Instruments

Description: Voltage References Micropower Voltage Reference

Download REF1004I-1.2/2K5 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

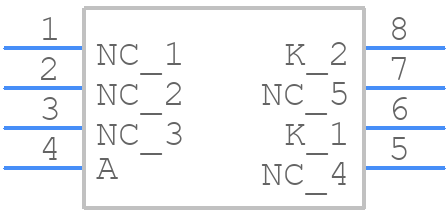

Symbol
REF1004I-1.2/2K5 - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
REF1004I-1.2/2K5 - Texas Instruments PCB footprint - Small Outline Packages - Small Outline Packages - D0008A
click to zoom
3D Models
REF1004I-1.2/2K5 - Texas Instruments - 3D model - Small Outline Packages - D0008A
click to zoom

REF1004I-1.2/2K5 Details

  • Manufacturer Part Number:

    REF1004I-1.2/2K5

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    SOIC

  • Pin Count:

    8

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Analog IC - Other Type:

    TWO TERMINAL VOLTAGE REFERENCE

  • JESD-30 Code:

    R-PDSO-G8

  • JESD-609 Code:

    e4

  • Length:

    4.9 mm

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    1

  • Number of Outputs:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Voltage-Max:

    1.239 V

  • Output Voltage-Min:

    1.231 V

  • Output Voltage-Nom:

    1.2 V

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP8,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.75 mm

  • Surface Mount:

    YES

  • Technology:

    BIPOLAR

  • Temp Coef of Voltage-Max:

    20 ppm/°C

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Trim/Adjustable Output:

    NO

  • Voltage Tolerance-Max:

    0.8%

  • Width:

    3.9 mm

REF1004I-1.2/2K5 Frequently Asked Questions (FAQs)

  • Texas Instruments recommends a star-grounded layout with the REF1004I-1.2/2K5 at the center, and using a solid ground plane to reduce noise. Additionally, keep the input and output traces separate and away from high-frequency signals.
  • To ensure stability and accuracy over temperature, use a low-ESR capacitor (e.g., 10uF) between the VOUT and GND pins, and a 1uF capacitor between the VIN and GND pins. Also, keep the device away from heat sources and ensure good airflow.
  • Although the datasheet specifies a maximum input voltage of 12V, it's recommended to limit the input voltage to 10V to ensure reliable operation and prevent damage to the device.
  • No, the REF1004I-1.2/2K5 is a voltage reference, not a voltage regulator. It's designed to provide a stable voltage reference, not to regulate voltage. Using it as a voltage regulator may lead to instability and inaccurate output.
  • The output impedance of the REF1004I-1.2/2K5 can be calculated using the equation: Zout = (ΔVout / ΔIout) || R_out, where R_out is the output resistance specified in the datasheet (typically around 10 ohms).

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

REF1004I-1.2/2K5 Overview

Use the download button to access the REF1004I-1.2/2K5 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like REF10, or try a keyword search, such as Voltage References
