REF102CP - Texas Instruments

Description: 2.5-ppm/°C drift, 10-V precision voltage reference

Download REF102CP Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

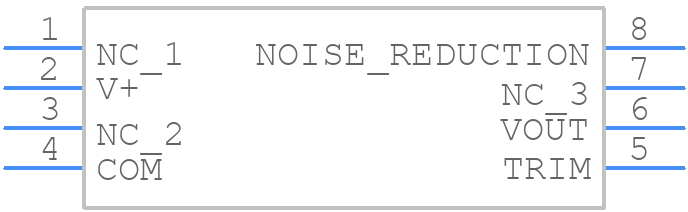

REF102CP - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
REF102CP - Texas Instruments PCB footprint - Dual-In-Line Packages - Dual-In-Line Packages - P (R-PDIP-T8)
click to zoom
3D Models
REF102CP - Texas Instruments - 3D model - Dual-In-Line Packages - P (R-PDIP-T8)
click to zoom

REF102CP Details

  • Manufacturer Part Number:

    REF102CP

  • Brand Name:

    Texas Instruments

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    DIP

  • Package Description:

    DIP-8

  • Pin Count:

    8

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    0

  • Analog IC - Other Type:

    THREE TERMINAL VOLTAGE REFERENCE

  • Input Voltage-Max:

    36 V

  • Input Voltage-Min:

    11.4 V

  • JESD-30 Code:

    R-PDIP-T8

  • JESD-609 Code:

    e4

  • Length:

    9.81 mm

  • Number of Functions:

    1

  • Number of Outputs:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -25 °C

  • Output Voltage-Max:

    10.0025 V

  • Output Voltage-Min:

    9.9975 V

  • Output Voltage-Nom:

    10 V

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    DIP

  • Package Equivalence Code:

    DIP8,.3

  • Package Shape:

    RECTANGULAR

  • Package Style:

    IN-LINE

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    5.08 mm

  • Supply Voltage-Max (Vsup):

    36 V

  • Supply Voltage-Min (Vsup):

    11.4 V

  • Supply Voltage-Nom (Vsup):

    15 V

  • Surface Mount:

    NO

  • Temp Coef of Voltage-Max:

    2.5 ppm/°C

  • Temperature Grade:

    OTHER

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    THROUGH-HOLE

  • Terminal Pitch:

    2.54 mm

  • Terminal Position:

    DUAL

  • Trim/Adjustable Output:

    YES

  • Voltage Tolerance-Max:

    0.025%

  • Width:

    7.62 mm

REF102CP Frequently Asked Questions (FAQs)

  • The REF102CP should be placed close to the analog-to-digital converter (ADC) or digital-to-analog converter (DAC) it is supplying, and the input and output pins should be routed separately to minimize noise coupling. A ground plane under the device is also recommended to reduce noise.
  • To ensure stability, a 10uF capacitor should be connected between the output pin and ground, and the device should be decoupled from the power supply with a 10uF capacitor and a 1kΩ resistor in series.
  • The power-up sequence should be: 1) Apply power to the REF102CP, 2) Wait for the REF102CP to settle (typically 10ms), and 3) Apply power to the ADC or DAC.
  • The total error budget includes the initial accuracy, temperature coefficient, and long-term stability. Calculate the total error budget by adding the absolute values of these three components.
  • Yes, the REF102CP can be used as a voltage reference for a ratiometric ADC. However, the REF102CP's output voltage should be divided down to match the ADC's input range, and the REF102CP's output impedance should be considered when designing the divider circuit.
