It's recommended to place the REF3325AIRSER close to the ADC, with a short and direct connection to minimize noise and parasitic inductance. A 4-layer PCB with a solid ground plane is recommended, and the REF3325AIRSER should be placed on the top layer with a local ground plane.
To ensure accurate voltage reference output, it's essential to decouple the REF3325AIRSER with a 10uF capacitor between the VOUT pin and GND, and a 0.1uF capacitor between the VIN pin and GND. Additionally, ensure the input voltage is within the recommended range (2.7V to 5.5V).
The thermal impedance of the REF3325AIRSER is typically around 30°C/W (junction-to-ambient thermal resistance). This means that for every watt of power dissipated, the junction temperature will rise by 30°C above the ambient temperature.
The REF3325AIRSER is rated for operation up to 125°C, but its accuracy and stability may degrade at higher temperatures. If you need to operate in high-temperature environments, consider using a thermally-enhanced package or a different voltage reference with a higher temperature rating.
To minimize noise and EMI, use a low-ESR capacitor (e.g., X7R or X5R) for decoupling, keep the REF3325AIRSER away from high-current or high-frequency signals, and use a shielded enclosure or a metal can package to reduce radiated emissions.
Trust Checks
This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
REF3325AIRSER Overview

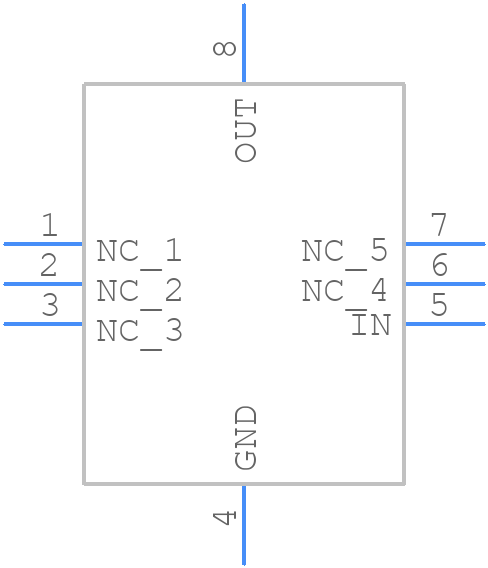

Use the download button to access the REF3325AIRSER schematic symbol, PCB footprint, and 3D model.
