Texas Instruments recommends a star-ground connection, with the REF3425QDGKRQ1 placed close to the analog-to-digital converter (ADC) or digital-to-analog converter (DAC), and using a low-impedance power supply. Additionally, keep the device away from high-current switching nodes and use a solid ground plane to reduce noise.
The REF3425QDGKRQ1 requires a single 2.7V to 5.5V power supply. Ensure the power supply is stable and well-regulated before applying power to the device. There are no specific power-up sequencing requirements, but it's recommended to power up the device after the power supply has stabilized.
The typical output impedance of the REF3425QDGKRQ1 is around 0.2 ohms. This low output impedance ensures a stable voltage reference, but it's essential to consider the output impedance when designing the system, especially when driving high-impedance loads or long cables.
The REF3425QDGKRQ1 has a temperature coefficient of 10 ppm/°C, which means it can handle temperature changes relatively well. However, it's still essential to consider thermal management in the system design, such as providing adequate heat sinking and airflow, to ensure the device operates within its specified temperature range.
The REF3425QDGKRQ1 is a relatively low-noise device, but it's still important to consider EMI and RFI in the system design. Use proper shielding, grounding, and decoupling techniques to minimize electromagnetic interference and radio-frequency interference.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
REF3425QDGKRQ1 Overview

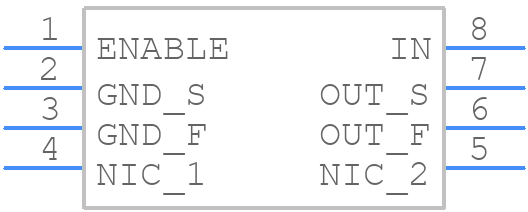

Use the download button to access the REF3425QDGKRQ1 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like REF34,
or try a keyword search, such as Voltage References
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
