The REF5020MDREP is a sensitive device and requires careful layout and placement to minimize noise and ensure accurate performance. It is recommended to place the device close to the analog-to-digital converter (ADC) or digital-to-analog converter (DAC), and to use a solid ground plane to reduce noise. Additionally, it is recommended to use a bypass capacitor (e.g., 10nF) between the VCC pin and GND to filter out high-frequency noise.
To ensure stability and accuracy over temperature, it is recommended to use a stable voltage source, minimize thermal gradients, and avoid exposing the device to extreme temperatures. Additionally, the REF5020MDREP has a built-in temperature sensor that can be used to compensate for temperature-related drift. It is also recommended to use a temperature-stable capacitor (e.g., NP0 or C0G) for the output capacitor.
The recommended output capacitor value for the REF5020MDREP is 10uF to 22uF, with a type that has low equivalent series resistance (ESR) and high stability over temperature, such as X5R or X7R ceramic capacitors. A larger capacitor value can help to improve noise rejection, but may also increase the startup time.
The REF5020MDREP requires a specific power-up sequence to ensure proper operation. It is recommended to power up the device in the following sequence: VCC, then VIN. The power-up sequence should be controlled to prevent voltage glitches or overshoots, which can cause the device to malfunction.
The recommended input voltage range for the REF5020MDREP is 4.5V to 5.5V, with a typical operating voltage of 5V. Operating the device outside of this range may affect its accuracy and stability.
Trust Checks
This model has been verified by system checks.
System Verified
Sponsored
REF5020MDREP Overview

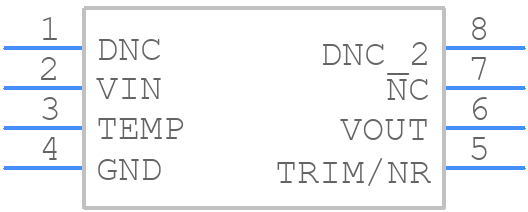

Use the download button to access the REF5020MDREP schematic symbol, PCB footprint, and 3D model.
