REF5040AQDRQ1 - Texas Instruments

Description: Automotive Low Noise, Very Low Drift, Precision 4.096V Series Voltage Reference

Download REF5040AQDRQ1 Model

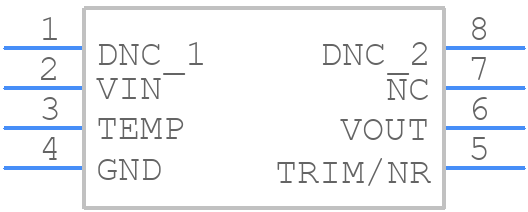

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
REF5040AQDRQ1 - Texas Instruments PCB footprint - Small Outline Packages - Small Outline Packages - D0008A
click to zoom
3D Models
REF5040AQDRQ1 - Texas Instruments  - 3D model - Small Outline Packages - D0008A
click to zoom

REF5040AQDRQ1 Details

  • Manufacturer Part Number:

    REF5040AQDRQ1

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    SOIC

  • Pin Count:

    8

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Analog IC - Other Type:

    THREE TERMINAL VOLTAGE REFERENCE

  • Input Voltage-Max:

    18 V

  • Input Voltage-Min:

    4.296 V

  • JESD-30 Code:

    R-PDSO-G8

  • JESD-609 Code:

    e4

  • Length:

    4.9 mm

  • Moisture Sensitivity Level:

    2

  • Number of Functions:

    1

  • Number of Outputs:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Voltage-Max:

    4.100096 V

  • Output Voltage-Min:

    4.091904 V

  • Output Voltage-Nom:

    4.096 V

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP8,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Screening Level:

    AEC-Q100

  • Seated Height-Max:

    1.75 mm

  • Supply Voltage-Max (Vsup):

    18 V

  • Supply Voltage-Min (Vsup):

    2.7 V

  • Supply Voltage-Nom (Vsup):

    3 V

  • Surface Mount:

    YES

  • Temp Coef of Voltage-Max:

    8 ppm/°C

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Trim/Adjustable Output:

    YES

  • Voltage Tolerance-Max:

    0.1%

  • Width:

    3.9 mm

REF5040AQDRQ1 Frequently Asked Questions (FAQs)

  • A good PCB layout for the REF5040AQDRQ1 involves placing the device close to the analog-to-digital converter (ADC) or digital-to-analog converter (DAC), using a solid ground plane, and keeping the input and output traces short and separate from the power traces. Additionally, decoupling capacitors should be placed close to the device to filter out high-frequency noise.
  • To ensure stability and accuracy, the REF5040AQDRQ1 should be operated within its recommended operating conditions, including temperature range and power supply voltage. Additionally, the device should be calibrated during manufacturing, and the output voltage should be monitored and adjusted as needed to compensate for any drift over time and temperature.
  • The recommended power-up sequence for the REF5040AQDRQ1 involves applying the power supply voltage (VCC) before applying the input voltage (VIN). This ensures that the internal circuitry is properly biased and configured before the input voltage is applied.
  • To protect the REF5040AQDRQ1 from EMI and RFI, use a shielded enclosure, keep the device away from sources of electromagnetic radiation, and use filtering components such as ferrite beads or inductors to filter out high-frequency noise. Additionally, use a low-pass filter or a pi-filter to filter out high-frequency noise on the input and output lines.
  • The recommended output capacitor value for the REF5040AQDRQ1 is typically in the range of 10 nF to 100 nF, depending on the specific application and operating conditions. A larger capacitor value can help to improve stability and accuracy, but may also increase the settling time and reduce the bandwidth.
