A good PCB layout practice is to keep the REF5045AQDRQ1 away from high-current carrying traces and noisy components. Use a solid ground plane and decouple the REF5045AQDRQ1 with a 10uF capacitor to reduce noise. Additionally, keep the output capacitor (Cout) close to the REF5045AQDRQ1 to minimize noise and ensure accurate voltage reference.
To ensure stability and accuracy over temperature, use a stable input voltage, decouple the REF5045AQDRQ1 with a 10uF capacitor, and use a low-ESR output capacitor (Cout). Additionally, consider using a thermally stable PCB material and ensure good thermal conductivity to minimize temperature gradients.
The recommended output capacitor (Cout) value for the REF5045AQDRQ1 is 10uF to 22uF, with a low ESR (Equivalent Series Resistance) to ensure stability and accuracy. A larger capacitor value can be used, but it may increase the startup time.
No, the REF5045AQDRQ1 is a voltage reference, not a voltage regulator. It is designed to provide a stable voltage reference, but it does not have the capability to regulate voltage. If you need a voltage regulator, consider using a separate voltage regulator IC.
The REF5045AQDRQ1 has a limited output current capability of 10mA. To handle this limitation, use a buffer amplifier or an op-amp to amplify the output current. Alternatively, consider using a voltage reference with a higher output current capability.
Trust Checks
This model has been verified by system checks.
System Verified
Sponsored
REF5045AQDRQ1 Overview

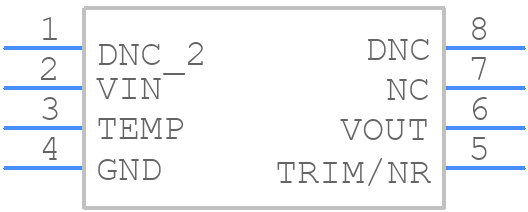

Use the download button to access the REF5045AQDRQ1 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like REF50,
or try a keyword search, such as Voltage References
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
