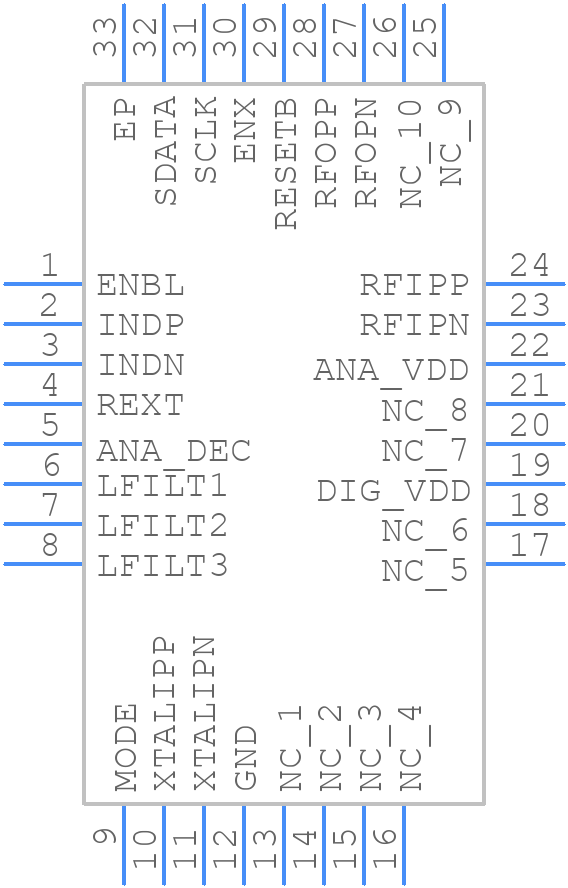

RF2052 - Qorvo - PCB symbol
click to zoom
PCB Footprints
RF2052 - Qorvo PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - QFN, 32-pin, 5mm x 5mm
click to zoom
3D Models
RF2052 - Qorvo - 3D model - Quad Flat No-Lead - QFN, 32-pin, 5mm x 5mm
click to zoom

RF2052 Details

  • Manufacturer Part Number:

    RF2052

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    5 X 5 MM, GREEN, PLASTIC, QFN-32

  • Country Of Origin:

    South Korea

  • ECCN Code:

    EAR99

  • HTS Code:

    8517.70.00.00

  • Manufacturer:

    Qorvo

  • JESD-30 Code:

    S-PQCC-N32

  • Length:

    5 mm

  • Moisture Sensitivity Level:

    2

  • Number of Functions:

    1

  • Number of Terminals:

    32

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVQCCN

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1 mm

  • Supply Voltage-Nom:

    3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Telecom IC Type:

    TELECOM CIRCUIT

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Width:

    5 mm

RF2052 Frequently Asked Questions (FAQs)

  • Qorvo provides a recommended PCB layout and grounding scheme in their application note AN-12033, which includes guidelines for component placement, trace routing, and grounding to minimize noise and ensure optimal performance.
  • Qorvo offers a variety of evaluation boards and design files that can be used as a starting point for custom designs. Additionally, Qorvo's application engineers can provide guidance on optimizing the RF2052 for specific frequency bands or applications.
  • The maximum power handling capability of the RF2052 is dependent on the specific application and operating conditions. Qorvo recommends consulting their application note AN-12033 for guidance on power handling and thermal management.
  • Qorvo provides guidance on meeting regulatory requirements for EMI and EMC in their application note AN-12033. Additionally, Qorvo's evaluation boards are designed to meet regulatory requirements, and can be used as a reference for custom designs.
  • The recommended operating temperature range for the RF2052 is -40°C to +85°C. However, Qorvo recommends consulting the datasheet and application notes for specific guidance on operating temperature range and thermal management.
