- Part Number RF2052SR
- Manufacturer Qorvo
- Pin Count 33
- Part Category Integrated Circuit
- Package Category Quad Flat No-Lead
- Footprint Name Quad Flat No-Lead - QFN, 32-pin, 5mm x 5mm
- Released Date Dec 15, 2022
- Last Modified Date Mar 1, 2025 7:15 PM UTC
- Pinout / Pin List Click Here (Member Only)
RF2052SR Details
-
Manufacturer Part Number:
RF2052SR
-
Rohs Code:
Yes
-
Part Life Cycle Code:
Active
-
Package Description:
5 X 5 MM, GREEN, PLASTIC, QFN-32
-
Country Of Origin:
South Korea
-
ECCN Code:
EAR99
-
HTS Code:
8517.70.00.00
-
Manufacturer:
Qorvo
-
JESD-30 Code:
S-PQCC-N32
-
Length:
5 mm
-
Number of Functions:
1
RF2052SR Frequently Asked Questions (FAQs)
-
Qorvo provides a recommended PCB layout and grounding scheme in their application note AN-12033, which includes guidelines for component placement, trace routing, and grounding to minimize noise and ensure optimal performance.
-
Qorvo provides a matching network design guide in their application note AN-12034, which includes guidelines for designing and optimizing the matching network for specific frequency bands and impedance requirements.
-
The maximum power handling capability of the RF2052SR is 2W, but it's recommended to derate the power handling to 1W or less to ensure reliable operation and minimize the risk of overheating.
-
The RF2052SR requires a bias voltage of 2.5V to 5V, and a bias current of 10mA to 50mA. It's recommended to use a voltage regulator and a current limiter to ensure stable biasing and prevent overheating.
-
The typical noise figure of the RF2052SR is around 1.5dB, but it can vary depending on the frequency, bias conditions, and operating temperature.
Trust Checks
Expert Contribution
System Verified
Community Approved
RF2052SR Overview

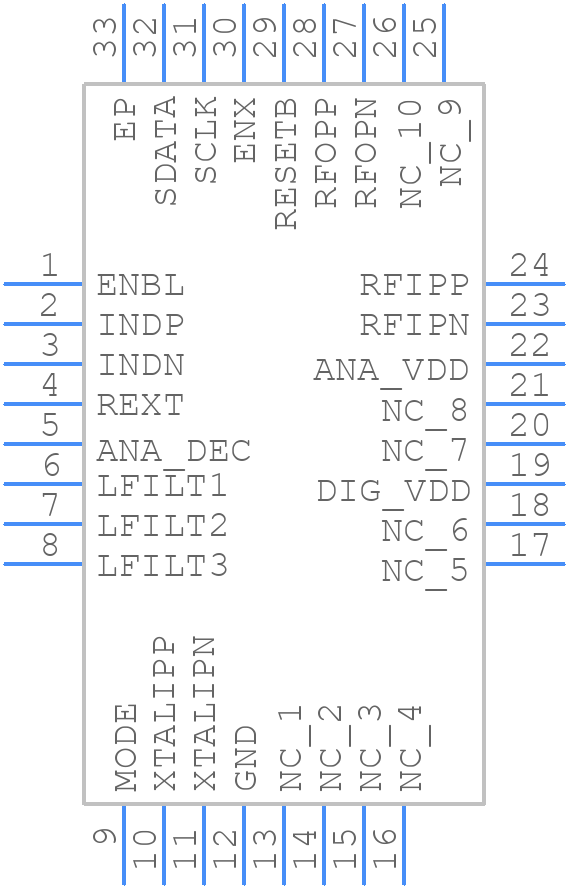

Use the download button to access the RF2052SR schematic symbol, PCB footprint, and 3D model.
