RF430CL330HTPWRQ1 - Texas Instruments

Description: RFID Transponders NFC Type-4 compliant tag

Download RF430CL330HTPWRQ1 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

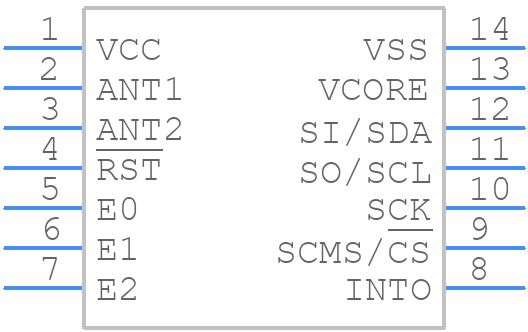

RF430CL330HTPWRQ1 - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
RF430CL330HTPWRQ1 - Texas Instruments PCB footprint - Small Outline Packages - Small Outline Packages - PW (R-PDSO-G14)
click to zoom
3D Models
RF430CL330HTPWRQ1 - Texas Instruments - 3D model - Small Outline Packages - PW (R-PDSO-G14)
click to zoom

RF430CL330HTPWRQ1 Details

  • Manufacturer Part Number:

    RF430CL330HTPWRQ1

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Package Description:

    TSSOP-14

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.32.00.71

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    0

  • Additional Feature:

    3.0-3.6 SUPPLY AVAILABLE WHEN NO RF FIELD

  • JESD-30 Code:

    R-PDSO-G14

  • Length:

    5 mm

  • Memory Density:

    24576 bit

  • Memory IC Type:

    NFC/RFID TAGS AND TRANSPONDERS

  • Memory Width:

    8

  • Number of Functions:

    1

  • Number of Terminals:

    14

  • Number of Words:

    3072 words

  • Number of Words Code:

    3000

  • Operating Mode:

    SYNCHRONOUS

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -40 °C

  • Organization:

    3KX8

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Equivalence Code:

    TSSOP14,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Screening Level:

    AEC-Q100

  • Seated Height-Max:

    1.2 mm

  • Supply Voltage-Max (Vsup):

    3.6 V

  • Supply Voltage-Min (Vsup):

    2 V

  • Supply Voltage-Nom (Vsup):

    3.3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Width:

    4.4 mm

RF430CL330HTPWRQ1 Frequently Asked Questions (FAQs)

  • Texas Instruments provides a recommended PCB layout in the application note SLAU445, which includes guidelines for component placement, trace routing, and grounding to minimize electromagnetic interference and ensure optimal performance.
  • The RF430CL330HTPWRQ1 requires calibration to ensure accurate power measurement. Texas Instruments provides a calibration procedure in the device's datasheet, which involves applying a known input power and adjusting the device's internal calibration registers accordingly.
  • The RF430CL330HTPWRQ1 is rated for operation from -40°C to 85°C, but it's recommended to derate the device's performance at higher temperatures to ensure reliability and accuracy.
  • While the RF430CL330HTPWRQ1 is designed for high-frequency applications, its performance may degrade above 3 GHz. Texas Instruments recommends using the device up to 2.7 GHz for optimal performance and accuracy.
  • The RF430CL330HTPWRQ1 has a serial peripheral interface (SPI) for communication with microcontrollers or other digital systems. Texas Instruments provides example code and interface guidelines in the device's datasheet and application notes.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

RF430CL330HTPWRQ1 Overview

Use the download button to access the RF430CL330HTPWRQ1 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like RF430, or try a keyword search, such as Other Memory ICs

About Texas Instruments

Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
