- Part Number RF6504
- Manufacturer Qorvo
- Pin Count 29
- Part Category Integrated Circuit
- Package Category Other
- Footprint Name Other - RF6504-2
- Released Date Mar 13, 2019
- Last Modified Date Mar 7, 2023 4:10 PM UTC
- Pinout / Pin List Click Here (Member Only)
RF6504 Details
-
Manufacturer Part Number:
RF6504
-
Rohs Code:
Yes
-
Part Life Cycle Code:
Obsolete
-
Package Description:
5.5 X 5 MM, GREEN, LGA-28
-
ECCN Code:
5A991.G
-
Manufacturer:
Qorvo
-
YTEOL:
0
-
JESD-30 Code:
R-XBCC-B28
-
Length:
5.5 mm
-
Number of Functions:
1
-
Number of Terminals:
28
RF6504 Frequently Asked Questions (FAQs)
-
Qorvo provides a recommended PCB layout and grounding scheme in their application note AN-2171, which includes guidelines for component placement, trace routing, and grounding to minimize noise and ensure optimal performance.
-
The RF6504 is a broadband device, but optimization for a specific frequency band can be achieved by adjusting the external matching network and biasing conditions. Qorvo provides a simulation model and design guidelines to help with this process.
-
The RF6504 is rated for a maximum input power of +20 dBm, but the actual power handling capability depends on the specific application and operating conditions. Qorvo recommends consulting their application engineers for guidance on power handling and thermal management.
-
The RF6504's noise figure and gain can be optimized by adjusting the biasing conditions, operating frequency, and external matching network. Qorvo provides a simulation model and design guidelines to help with this process, and their application engineers can provide additional guidance.
-
Qorvo provides guidelines for soldering and assembly in their package outline drawing and assembly instructions, which include recommendations for reflow soldering, wire bonding, and die attach.
Trust Checks
Expert Contribution
System Verified
Community Approved
RF6504 Overview

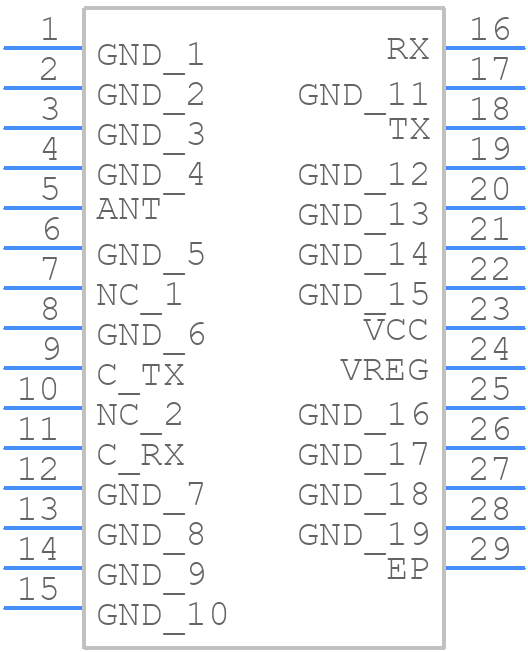

Use the download button to access the RF6504 schematic symbol, PCB footprint, and 3D model.
