Qorvo provides a recommended PCB layout and land pattern in their application note AN-2171, which can be found on their website. It's essential to follow these guidelines to ensure optimal performance and minimize parasitic effects.
The biasing circuit should be designed to provide a stable voltage supply to the device. A recommended biasing circuit is shown in the datasheet, but it's essential to consider the specific application requirements and adjust the circuit accordingly. Qorvo's application note AN-2171 also provides guidance on biasing circuit design.
The maximum power handling capability of the RFFC2072ASB is not explicitly stated in the datasheet. However, Qorvo recommends derating the device's power handling capability based on the operating frequency, temperature, and other application-specific factors. It's essential to consult with Qorvo's application engineers or refer to their application notes for guidance on power handling.
Proper matching is critical for optimal performance. Qorvo recommends using a pi-match or T-match network to match the device's input and output impedances to the system's impedance. The datasheet provides some guidance on matching, but it's essential to consult with Qorvo's application engineers or refer to their application notes for specific guidance on matching for the RFFC2072ASB.
Thermal management is critical for the RFFC2072ASB, as it can affect the device's performance and reliability. Qorvo recommends using a thermal pad or heat sink to dissipate heat, and ensuring good thermal conductivity between the device and the PCB. The datasheet provides some guidance on thermal management, but it's essential to consult with Qorvo's application engineers or refer to their application notes for specific guidance on thermal management for the RFFC2072ASB.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
RFFC2072ASB Overview

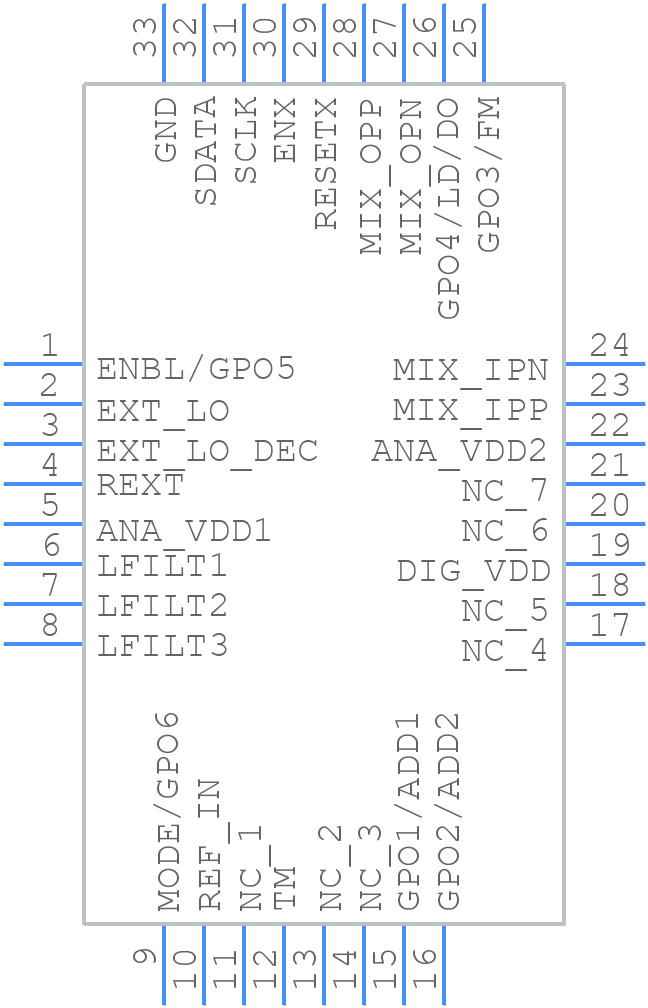

Use the download button to access the RFFC2072ASB schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like RFFC2,
or try a keyword search, such as Other Telecom ICs
About Qorvo
Qorvo is a prominent American semiconductor company that specializes in the design and manufacturing of radio frequency (RF) solutions. The company was formed in 2015 through the merger of TriQuint Semiconductor and RF Micro Devices. Qorvo's product portfolio encompasses a wide range of RF components and semiconductor technologies used in various applications, including wireless communications, aerospace and defense, and IoT (Internet of Things) devices.
