Qorvo provides a recommended PCB layout and land pattern in their application note AN-2171, which should be followed for optimal performance and to minimize parasitic effects.
Qorvo provides a detailed biasing and configuration guide in their application note AN-2172, which provides guidance on setting the optimal bias voltage, current, and configuration for specific applications.
The RFFC2072ATR13 has a maximum junction temperature of 150°C. To ensure reliable operation, it's essential to follow proper thermal management practices, such as using a heat sink, thermal interface material, and ensuring good airflow.
Qorvo provides a troubleshooting guide in their application note AN-2173, which provides guidance on identifying and resolving common issues, such as oscillations or instability, and offers tips for optimizing performance.
The RFFC2072ATR13 is a sensitive device and requires proper ESD protection and handling precautions to prevent damage. Qorvo recommends following standard ESD handling procedures, such as using an ESD wrist strap, mat, and storage containers.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
RFFC2072ATR13 Overview

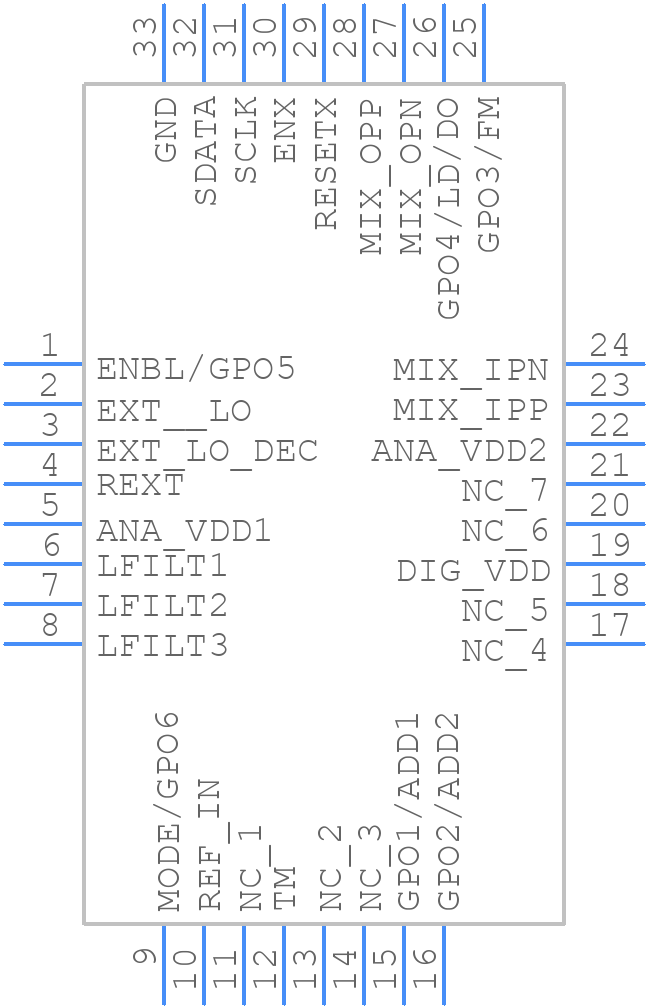

Use the download button to access the RFFC2072ATR13 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like RFFC2,
or try a keyword search, such as Other Telecom ICs
About Qorvo
Qorvo is a prominent American semiconductor company that specializes in the design and manufacturing of radio frequency (RF) solutions. The company was formed in 2015 through the merger of TriQuint Semiconductor and RF Micro Devices. Qorvo's product portfolio encompasses a wide range of RF components and semiconductor technologies used in various applications, including wireless communications, aerospace and defense, and IoT (Internet of Things) devices.
