RFFC5071A - Qorvo

Description: RF Mixer 85MHz to 4200MHz LO WIDEBAND SYNTHESIZER/VCO WITH INTEGRATED 6 GHz MIXER

Download RFFC5071A Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

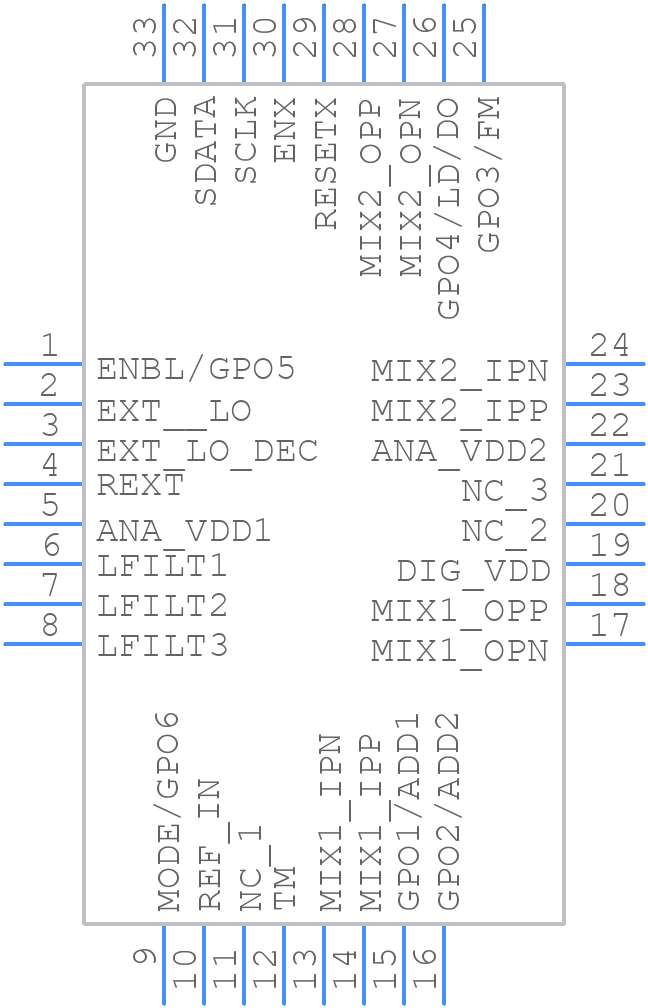

RFFC5071A - Qorvo - PCB symbol
click to zoom
PCB Footprints
RFFC5071A - Qorvo PCB footprint - Other - Other - 32-Pin QFN (5mm x 5mm)_2024
click to zoom
3D Models
RFFC5071A - Qorvo - 3D model - Other - 32-Pin QFN (5mm x 5mm)_2024
click to zoom

RFFC5071A Details

  • Manufacturer Part Number:

    RFFC5071A

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Philippines

  • ECCN Code:

    5A991.G

  • Manufacturer:

    Qorvo

  • JESD-609 Code:

    e4

  • Moisture Sensitivity Level:

    2

  • Peak Reflow Temperature (Cel):

    260

  • Telecom IC Type:

    TELECOM CIRCUIT

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Time@Peak Reflow Temperature-Max (s):

    30

RFFC5071A Frequently Asked Questions (FAQs)

  • Qorvo provides a recommended PCB layout in their application note AN-2171, which includes guidelines for component placement, trace routing, and grounding to minimize noise and ensure optimal performance.
  • The optimal biasing of the RFFC5071A depends on the specific application and operating conditions. Qorvo recommends consulting their application note AN-2171, which provides guidance on biasing and tuning the device for optimal performance.
  • The maximum power handling capability of the RFFC5071A is not explicitly stated in the datasheet, but Qorvo recommends consulting their application note AN-2171, which provides guidance on power handling and thermal management.
  • Qorvo recommends using a 50-ohm load or antenna and following the impedance matching guidelines in their application note AN-2171 to ensure optimal performance and minimize reflections.
  • The operating temperature range of the RFFC5071A is -40°C to +85°C, but Qorvo recommends consulting their application note AN-2171 for guidance on thermal management and derating for high-temperature operation.
