RFFC5071ATR13 - Qorvo

Description: 85 - 4200 MHz Wideband Synthesizer / VCO with Integrated 6 GHz RF Mixer

Download RFFC5071ATR13 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

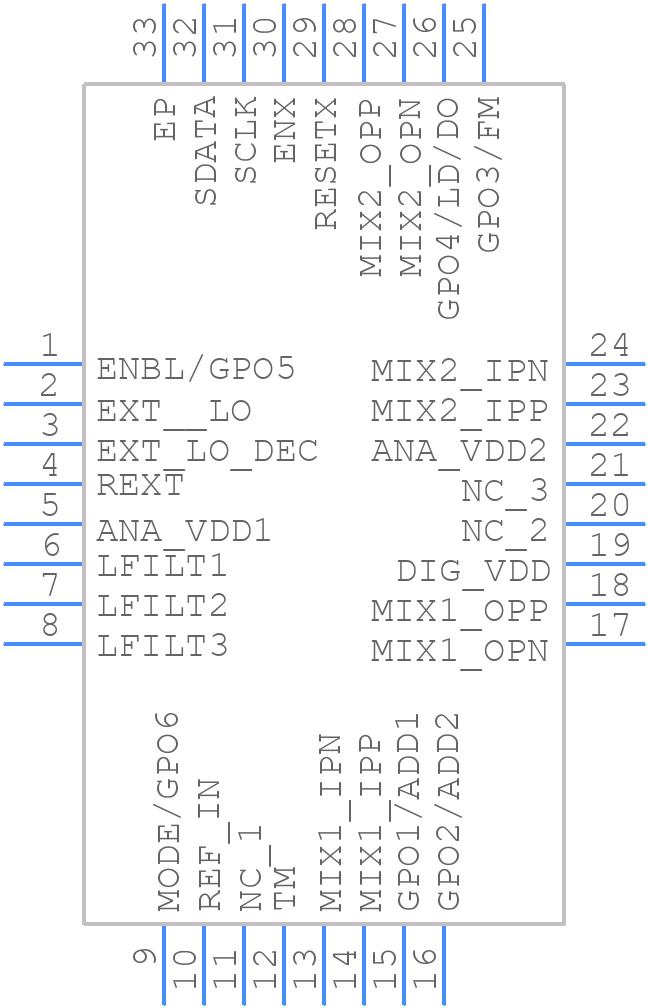

RFFC5071ATR13 - Qorvo - PCB symbol
click to zoom
PCB Footprints
RFFC5071ATR13 - Qorvo PCB footprint - Other - Other - QFN, 32-Pin, 5mm x 5mm_2025-2
click to zoom
3D Models
RFFC5071ATR13 - Qorvo - 3D model - Other - QFN, 32-Pin, 5mm x 5mm_2025-2
click to zoom

RFFC5071ATR13 Details

  • Manufacturer Part Number:

    RFFC5071ATR13

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    QFN-32

  • Country Of Origin:

    Philippines

  • HTS Code:

    8542.39.00.01

  • Factory Lead Time:

    16 Weeks

  • Manufacturer:

    Qorvo

  • JESD-30 Code:

    S-XQCC-N32

  • JESD-609 Code:

    e3

  • Length:

    5 mm

  • Moisture Sensitivity Level:

    5

  • Number of Functions:

    1

  • Number of Terminals:

    32

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    HVQCCN

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    0.95 mm

  • Supply Voltage-Nom:

    3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Telecom IC Type:

    TELECOM CIRCUIT

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    5 mm

RFFC5071ATR13 Frequently Asked Questions (FAQs)

  • Qorvo provides a recommended PCB layout and land pattern in their application note AN-123, which can be found on their website. It's essential to follow this layout to ensure optimal performance and minimize parasitic effects.
  • Qorvo provides a set of recommended input and output matching networks in their datasheet. However, the optimal matching network may vary depending on the specific application and board layout. Engineers can use simulation tools like ADS or AWR to optimize the matching networks for their specific design.
  • The RFFC5071ATR13 can handle up to 2W of input power. However, it's essential to ensure that the device is properly biased and that the input power is within the recommended range to avoid overheating and damage to the device.
  • The RFFC5071ATR13 requires a specific biasing scheme to operate correctly. Engineers should follow the recommended biasing circuit and voltage levels outlined in the datasheet to ensure proper operation and minimize the risk of damage to the device.
  • The RFFC5071ATR13 is rated for operation from -40°C to 85°C. However, the device's performance and reliability may be affected at extreme temperatures. Engineers should ensure that the device is operated within the recommended temperature range to ensure optimal performance and reliability.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

RFFC5071ATR13 Overview

Use the download button to access the RFFC5071ATR13 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like RFFC5, or try a keyword search, such as Other Telecom ICs

About Qorvo

Qorvo is a prominent American semiconductor company that specializes in the design and manufacturing of radio frequency (RF) solutions. The company was formed in 2015 through the merger of TriQuint Semiconductor and RF Micro Devices. Qorvo's product portfolio encompasses a wide range of RF components and semiconductor technologies used in various applications, including wireless communications, aerospace and defense, and IoT (Internet of Things) devices.
