- Part Number RFFM6204TR7
- Manufacturer Qorvo
- Pin Count 17
- Part Category Integrated Circuit
- Package Category Quad Flat No-Lead
- Footprint Name Quad Flat No-Lead - 16-QFN
- Released Date Dec 13, 2022
- Last Modified Date Feb 19, 2025 12:06 PM UTC
- Pinout / Pin List Click Here (Member Only)
RFFM6204TR7 Details
-
Manufacturer Part Number:
RFFM6204TR7
-
Part Life Cycle Code:
Obsolete
-
Package Description:
2.50 X 2.50 MM, 0.50 MM HEIGHT, GREEN, QFN-16
-
HTS Code:
8542.39.00.01
-
Manufacturer:
Qorvo
-
YTEOL:
0
-
JESD-30 Code:
S-XQCC-N16
-
Length:
2.5 mm
-
Number of Functions:
1
-
Number of Terminals:
16
-
Operating Temperature-Max:
125 °C
RFFM6204TR7 Frequently Asked Questions (FAQs)
-
Qorvo provides a recommended PCB layout in their application note AN-1234, which includes guidelines for component placement, trace routing, and grounding to minimize parasitic effects and ensure optimal performance.
-
The RFFM6204TR7 has a thermal pad on the bottom of the package, which should be connected to a thermal ground plane on the PCB to dissipate heat. Additionally, ensure good airflow around the device and consider using thermal vias or heat sinks if necessary.
-
While the datasheet specifies an operating temperature range of -40°C to 85°C, Qorvo recommends derating the device's power handling capabilities above 70°C to ensure reliable operation and prevent thermal runaway.
-
Yes, but impedance matching networks may be required to optimize performance. Qorvo provides guidance on impedance matching in their application note AN-1235, which includes examples for common impedance values.
-
Qorvo recommends using a combination of visual inspection, signal integrity analysis, and power measurement tools to identify and troubleshoot issues. Their application note AN-1236 provides a step-by-step guide for troubleshooting common problems.
Trust Checks
Manufacturer Collaborated
System Verified
Community Approved
RFFM6204TR7 Overview

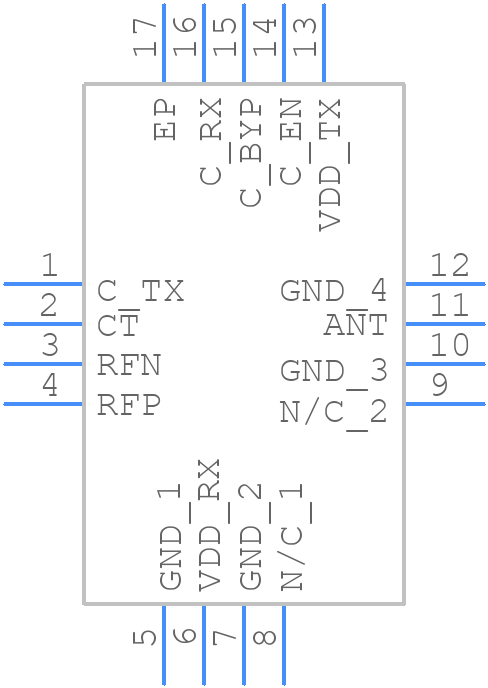

Use the download button to access the RFFM6204TR7 schematic symbol, PCB footprint, and 3D model.
