Qorvo provides a recommended PCB layout and thermal management guide in their application note AN-2171, which includes guidelines for thermal pad connection, heat sink attachment, and PCB layout considerations.
Qorvo provides a set of impedance data in the datasheet, which can be used to design input and output matching networks using tools like Qorvo's own RF design software, Genesys, or third-party tools like ADS or AWR Microwave Office.
The maximum SOA is defined by the device's voltage, current, and power ratings. Qorvo provides a SOA graph in the datasheet, and recommends using their SOA calculator tool to ensure the device is operated within the safe region.
The RFPA5512TR13 has a built-in thermal shutdown feature that disables the device when the junction temperature exceeds 150°C. Qorvo recommends using an external temperature sensor and a microcontroller to monitor the device temperature and implement a shutdown sequence if necessary.
Qorvo provides a set of assembly and soldering guidelines in their application note AN-2171, which includes recommendations for reflow soldering, wave soldering, and manual assembly.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
RFPA5512TR13 Overview

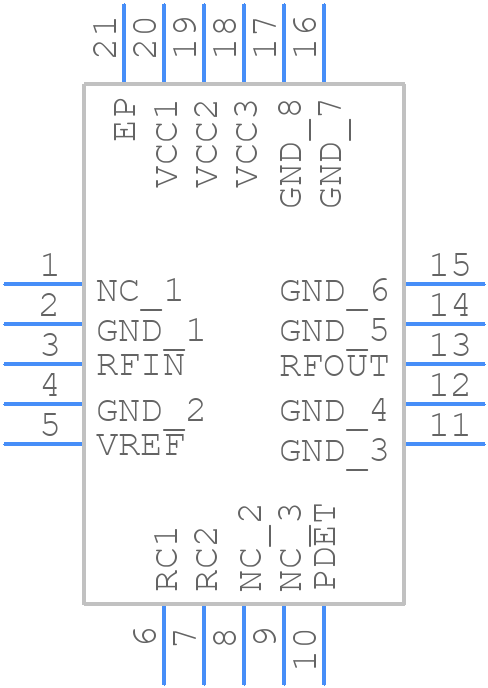

Use the download button to access the RFPA5512TR13 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like RFPA5,
or try a keyword search, such as Other Telecom ICs
About Qorvo
Qorvo is a prominent American semiconductor company that specializes in the design and manufacturing of radio frequency (RF) solutions. The company was formed in 2015 through the merger of TriQuint Semiconductor and RF Micro Devices. Qorvo's product portfolio encompasses a wide range of RF components and semiconductor technologies used in various applications, including wireless communications, aerospace and defense, and IoT (Internet of Things) devices.
