RN1810-I/RM100 - Microchip

Description: WiFi Modules (802.11) WiFi 802.11n Radio WiFly o UART PCB ant

Download RN1810-I/RM100 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

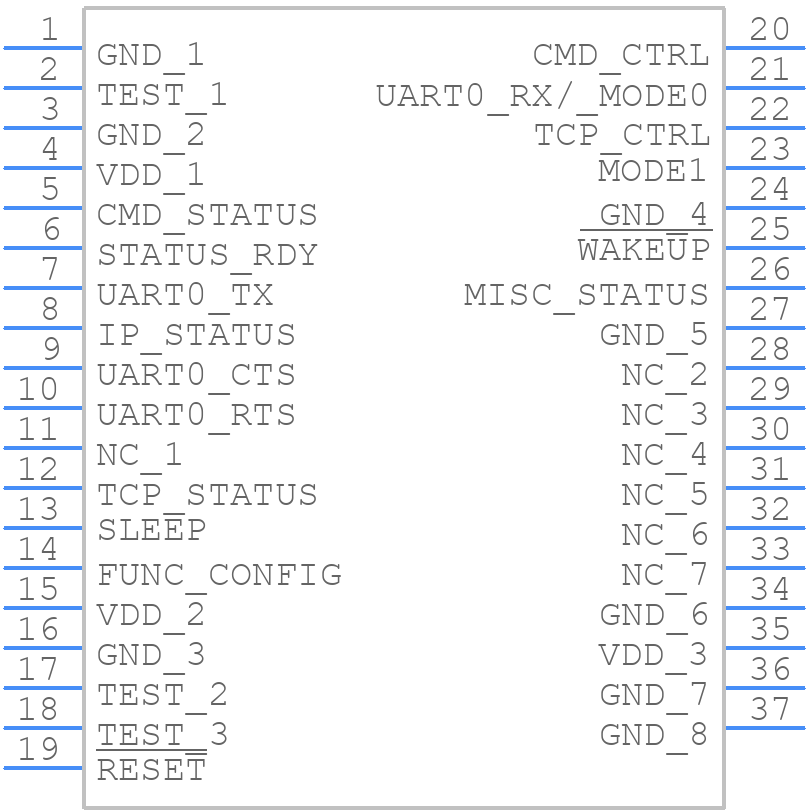

RN1810-I/RM100 - Microchip - PCB symbol
click to zoom
PCB Footprints

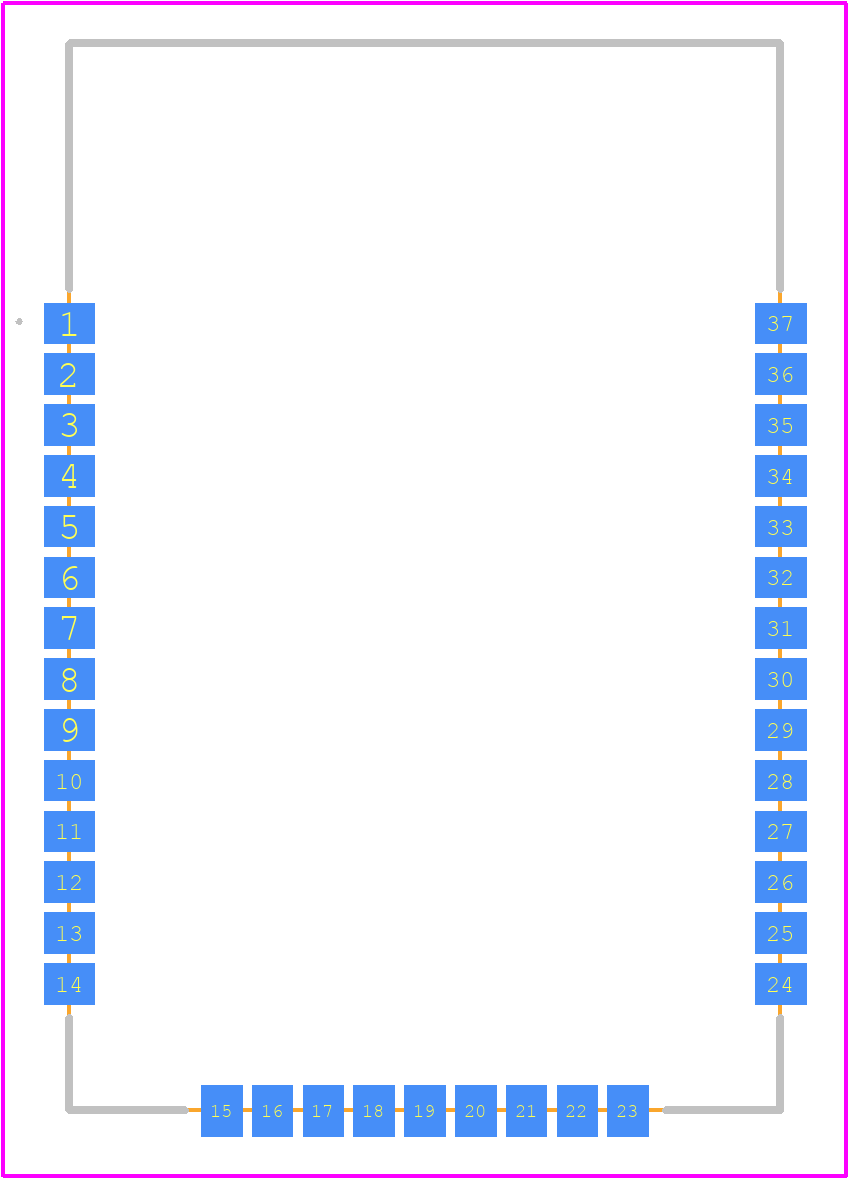

RN1810-I/RM100 - Microchip PCB footprint - Other - Other - RN1810-I/RM100-5
click to zoom
3D Models
RN1810-I/RM100 - Microchip - 3D model - Other - RN1810-I/RM100-5
click to zoom

RN1810-I/RM100 Details

  • Manufacturer Part Number:

    RN1810-I/RM100

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Package Description:

    MODULE-37

  • ECCN Code:

    5A992.C

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Microchip Technology Inc

  • YTEOL:

    0

  • JESD-30 Code:

    R-XXMA-N37

  • Length:

    26.67 mm

  • Number of Functions:

    1

  • Number of Terminals:

    37

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    XMA

  • Package Shape:

    RECTANGULAR

  • Package Style:

    MICROELECTRONIC ASSEMBLY

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    2.28 mm

  • Supply Voltage-Nom:

    3.3 V

  • Surface Mount:

    YES

  • Telecom IC Type:

    TELECOM CIRCUIT

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    UNSPECIFIED

  • Width:

    17.78 mm

RN1810-I/RM100 Frequently Asked Questions (FAQs)

  • The RN1810-I/RM100 can support up to 8 concurrent connections, including the connection to the access point.
  • To configure the RN1810-I/RM100 to operate in low-power mode, use the 'AT+SLEEP' command to put the module into sleep mode. You can also use the 'AT+LOWPOWER' command to configure the module to operate in low-power mode.
  • Yes, the RN1810-I/RM100 has a U.FL connector that allows you to connect an external antenna. Make sure to follow the recommended antenna design guidelines to ensure optimal performance.
  • You can update the firmware on the RN1810-I/RM100 using the 'AT+UPDATE' command. You will need to download the latest firmware from the Microchip website and follow the instructions provided in the datasheet.
  • The RN1810-I/RM100 supports a maximum data transfer rate of up to 72.2 Mbps.

Trust Checks

This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

RN1810-I/RM100 Overview

Use the download button to access the RN1810-I/RM100 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like RN181, or try a keyword search, such as Other Telecom ICs
