RT1711PGQW - RICHTEK

Description: RICHTEK - RT1711PGQW - USB PD CONTROLLER, WQFN-24

Download RT1711PGQW Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

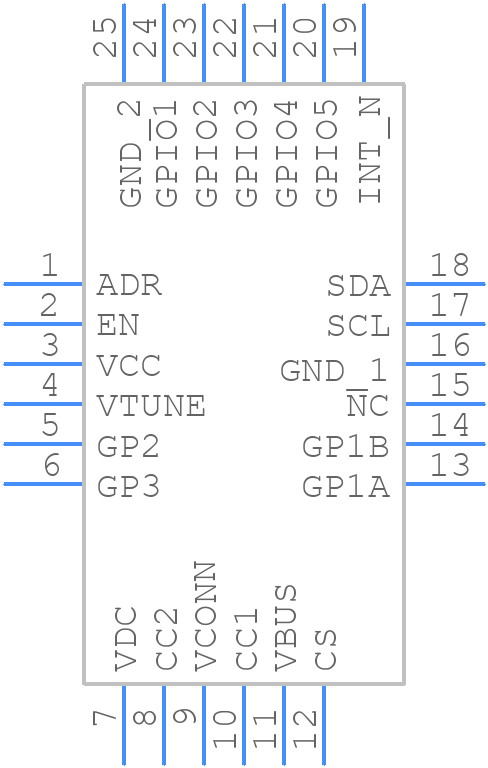

RT1711PGQW - RICHTEK - PCB symbol
click to zoom
PCB Footprints
RT1711PGQW - RICHTEK PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - W-Type 24L QFN 3.5x3.5 Package
click to zoom
3D Models
RT1711PGQW - RICHTEK - 3D model - Quad Flat No-Lead - W-Type 24L QFN 3.5x3.5 Package
click to zoom

RT1711PGQW Details

  • Manufacturer Part Number:

    RT1711PGQW

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Not Recommended

  • Part Package Code:

    WQFN3.5x3.5-24

  • Package Description:

    WQFN-24

  • Manufacturer Package Code:

    WQFN3.5x3.5-24

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    Richtek Technology Corp

  • YTEOL:

    3

  • Adjustable Threshold:

    YES

  • Analog IC - Other Type:

    USB PD CONTROLLER

  • JESD-30 Code:

    S-PQCC-N24

  • Length:

    3.5 mm

  • Number of Functions:

    1

  • Number of Terminals:

    24

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HWQCCN

  • Package Equivalence Code:

    LCC24,.14SQ,16

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY VERY THIN PROFILE

  • Seated Height-Max:

    0.8 mm

  • Supply Voltage-Max (Vsup):

    5.5 V

  • Supply Voltage-Min (Vsup):

    3 V

  • Supply Voltage-Nom (Vsup):

    3.3 V

  • Surface Mount:

    YES

  • Terminal Pitch:

    0.4 mm

  • Terminal Position:

    QUAD

  • Width:

    3.5 mm

RT1711PGQW Frequently Asked Questions (FAQs)

  • A 4-layer PCB with a solid ground plane and thermal vias is recommended. The RT1711PGQW's thermal pad should be connected to the ground plane through multiple thermal vias to ensure efficient heat dissipation.
  • To ensure stable and accurate output voltage, it is essential to use a high-quality output capacitor with low ESR and a sufficient capacitance value (e.g., 10uF). Additionally, the input voltage should be well-regulated, and the output voltage should be monitored and adjusted as needed.
  • Although the datasheet specifies a maximum input voltage of 18V, it is recommended to limit the input voltage to 15V to ensure reliable operation and prevent damage to the device.
  • Implementing overcurrent protection (OCP) and overtemperature protection (OTP) is crucial. The RT1711PGQW has a built-in OCP, but it is recommended to add an external OCP circuit for added protection. Additionally, a thermal monitoring circuit can be used to detect overheating and shut down the device if necessary.
  • A 10uF to 22uF ceramic or electrolytic capacitor with a low ESR value (e.g., X5R or X7R dielectric) is recommended for the input capacitor. This ensures stable input voltage and reduces the risk of oscillation.

Trust Checks

This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

RT1711PGQW Overview

Use the download button to access the RT1711PGQW schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like RT171, or try a keyword search, such as Power Management Circuits
