RT1720GF - RICHTEK

Description: 60V Hot Swap Controller with Fault Timer

Download RT1720GF Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

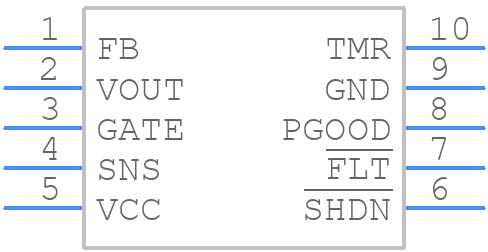

RT1720GF - RICHTEK - PCB symbol
click to zoom
PCB Footprints
RT1720GF - RICHTEK PCB footprint - Small Outline Packages - Small Outline Packages - 10-Lead MSOP
click to zoom
3D Models
RT1720GF - RICHTEK - 3D model - Small Outline Packages - 10-Lead MSOP
click to zoom

RT1720GF Details

  • Manufacturer Part Number:

    RT1720GF

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    MSOP-10

  • Manufacturer Package Code:

    MSOP-10

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    Richtek Technology Corp

  • YTEOL:

    0

  • Adjustable Threshold:

    YES

  • Analog IC - Other Type:

    HOT SWAP CONTROLLER

  • JESD-30 Code:

    S-PDSO-G10

  • Length:

    3 mm

  • Number of Functions:

    1

  • Number of Terminals:

    10

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Seated Height-Max:

    1.1 mm

  • Supply Voltage-Max (Vsup):

    80 V

  • Supply Voltage-Min (Vsup):

    5 V

  • Supply Voltage-Nom (Vsup):

    12 V

  • Surface Mount:

    YES

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Width:

    3 mm

RT1720GF Frequently Asked Questions (FAQs)

  • A 4-layer PCB with a solid ground plane and thermal vias is recommended. The RT1720GF's thermal pad should be connected to a large copper area on the PCB to dissipate heat efficiently.
  • Use a high-quality output capacitor with low ESR and a minimum capacitance of 10uF. Also, ensure the input voltage is stable and within the recommended range.
  • The maximum input voltage is 18V, but it's recommended to keep it below 15V to ensure reliable operation and prevent damage to the device.
  • Use an external current-sensing resistor and a fuse or a PTC (Positive Temperature Coefficient) thermistor to detect overcurrent conditions. Also, ensure the PCB layout is designed to prevent shorts and overheating.
  • The recommended operating temperature range is -40°C to 85°C. However, the device can operate up to 125°C with derated specifications.

Trust Checks

This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

RT1720GF Overview

Use the download button to access the RT1720GF schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like RT172, or try a keyword search, such as Power Management Circuits
