RT5047BFGSP - RICHTEK

Description: POWER MANAGEMENT IC, 16V, SOP-8; Supply Voltage:16V; No. of Step-Down DC - DC Converters:-; No. of LDO Regulators:1; No. of Regulated Outputs:2; Digital IC Case:SOP; No. of Pins:8Pins; Operating Temperature Min:-40°C; Operating RoHS Compliant: Yes

Download RT5047BFGSP Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

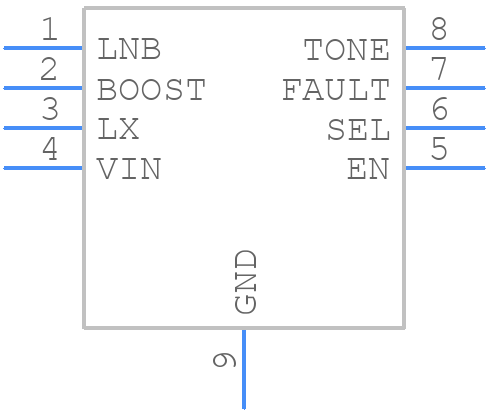

RT5047BFGSP - RICHTEK - PCB symbol
click to zoom
PCB Footprints
RT5047BFGSP - RICHTEK PCB footprint - Small Outline Packages - Small Outline Packages - 8-Lead SOP (Exposed Pad) Plastic Package
click to zoom
3D Models
RT5047BFGSP - RICHTEK - 3D model - Small Outline Packages - 8-Lead SOP (Exposed Pad) Plastic Package
click to zoom

RT5047BFGSP Details

  • Manufacturer Part Number:

    RT5047BFGSP

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    SOP-8

  • Package Description:

    SOP-8

  • Manufacturer Package Code:

    SOP-8

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    Richtek Technology Corp

  • YTEOL:

    6

  • Adjustable Threshold:

    NO

  • Analog IC - Other Type:

    INPUT FAULT PROTECTION CONTROLLER

  • JESD-30 Code:

    R-PDSO-G8

  • Length:

    4.9025 mm

  • Number of Channels:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HSOP

  • Package Equivalence Code:

    SOP8,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG

  • Seated Height-Max:

    1.753 mm

  • Supply Current-Max (Isup):

    28 mA

  • Supply Voltage-Max (Vsup):

    16 V

  • Supply Voltage-Min (Vsup):

    8 V

  • Supply Voltage-Nom (Vsup):

    12 V

  • Surface Mount:

    YES

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Threshold Voltage-Nom:

    +7.35V

  • Width:

    3.905 mm

RT5047BFGSP Frequently Asked Questions (FAQs)

  • A 4-layer PCB with a solid ground plane and a separate power plane is recommended. Keep the input and output capacitors close to the IC, and use short and wide traces for the power lines.
  • To ensure stability, use a minimum output capacitance of 10uF, and ensure that the output capacitor's ESR is within the recommended range. Also, avoid using ceramic capacitors with high ESL.
  • The RT5047BFGSP can handle a maximum input voltage of 18V, but it's recommended to keep the input voltage below 15V for optimal performance and reliability.
  • The output voltage can be calculated using the formula: Vout = (R1/R2) * (Vref), where R1 and R2 are the resistors in the feedback network, and Vref is the internal reference voltage (1.25V).
  • The thermal shutdown temperature of the RT5047BFGSP is typically around 150°C, but it can vary depending on the specific application and operating conditions.
