RT9728AHGQW - RICHTEK

Description: 120mΩ, 1.3A Power Switch with Programmable Current Limit C PWR SW USB 1.3A 6WDFN

Download RT9728AHGQW Model

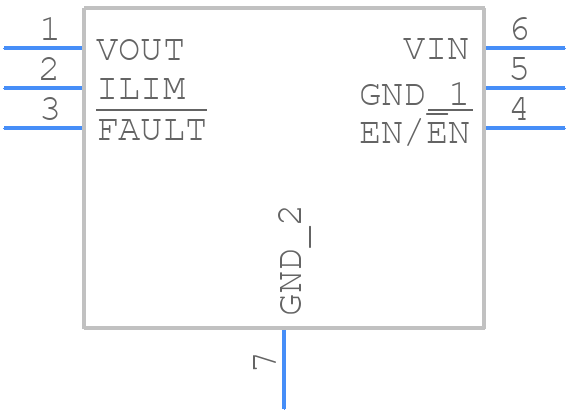

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
RT9728AHGQW - RICHTEK PCB footprint - Small Outline No-lead - Small Outline No-lead - W-Type 6L DFN 2x2 Package
click to zoom
3D Models
RT9728AHGQW - RICHTEK  - 3D model - Small Outline No-lead - W-Type 6L DFN 2x2 Package
click to zoom

RT9728AHGQW Details

  • Manufacturer Part Number:

    RT9728AHGQW

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    WDFN2x2-6

  • Package Description:

    WDFN-6

  • Pin Count:

    6

  • Manufacturer Package Code:

    WDFN2x2-6

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    Richtek Technology Corp

  • YTEOL:

    7

  • Adjustable Threshold:

    YES

  • Analog IC - Other Type:

    LOAD SWITCH

  • JESD-30 Code:

    S-XQCC-N6

  • Length:

    2 mm

  • Number of Channels:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    6

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC8,.78SQ,25

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Seated Height-Max:

    0.8 mm

  • Supply Voltage-Max (Vsup):

    5.5 V

  • Supply Voltage-Min (Vsup):

    2.5 V

  • Supply Voltage-Nom (Vsup):

    3.6 V

  • Surface Mount:

    YES

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    QUAD

  • Threshold Voltage-Nom:

    +2.1V

  • Width:

    2 mm

RT9728AHGQW Frequently Asked Questions (FAQs)

  • A 4-layer PCB with a solid ground plane and thermal vias is recommended. The IC should be placed near a thermal pad or a heat sink to dissipate heat efficiently.
  • Ensure that the output capacitor has a low ESR and is placed close to the IC. Also, use a minimum of 10uF output capacitance and ensure that the feedback network is properly compensated.
  • The maximum input voltage is 28V, but it's recommended to keep it below 24V for optimal performance and reliability.
  • Yes, the RT9728AHGQW is rated for operation up to 125°C, but the maximum junction temperature should not exceed 150°C. Ensure proper thermal design and heat sinking to prevent overheating.
  • The output voltage can be adjusted by changing the feedback resistors (R1 and R2) according to the formula: Vout = 0.8V * (1 + R2/R1).
