A 4-layer PCB with a solid ground plane and thermal vias is recommended. The device should be placed near a thermal pad or heat sink to dissipate heat efficiently.
Monitor the input voltage, output voltage, and output current to ensure they are within the specified ranges. Also, ensure the device is operated within the recommended temperature range of -40°C to 125°C.
A low-ESR ceramic capacitor with a value of 10uF to 22uF is recommended for input decoupling. The capacitor should be placed as close to the device as possible.
Check the input voltage, output voltage, and output current to ensure they are within the specified ranges. Verify that the device is properly connected and that the input and output capacitors are of the correct type and value.
A low-ESR ceramic capacitor with a value of 10uF to 22uF is recommended for output decoupling. The capacitor should be placed as close to the device as possible.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
RTQ6749GQW-QT-A2 Overview

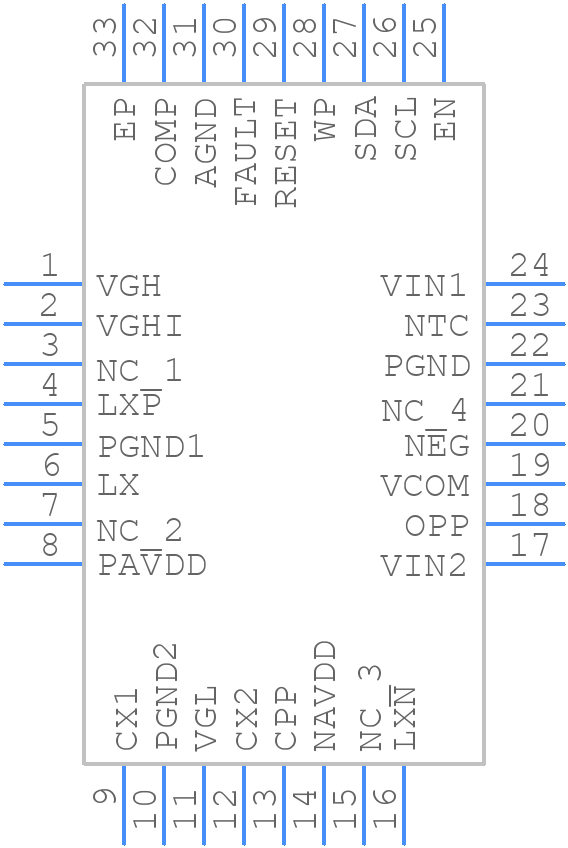

Use the download button to access the RTQ6749GQW-QT-A2 schematic symbol, PCB footprint, and 3D model.
