S-8261ABMMD-G3MT2U footprint, schematic symbol and 3D model by ABLIC Inc.

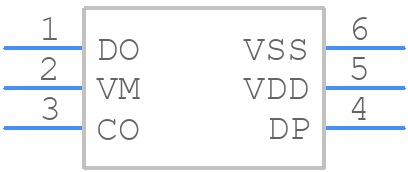

Symbol

click to zoom

PCB Footprints

click to zoom

3D Models

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for S-8261ABMMD-G3MT2U
Part Number S-8261ABMMD-G3MT2U
Manufacturer ABLIC Inc.
Pin Count 6
Part Category Integrated Circuit
Package Category SOT23 (6-Pin)
Footprint Name SOT23 (6-Pin) - SOT-23-6.....
Released Date Jul 31, 2026
Last Modified Date Jul 31, 2026 3:36 AM UTC
Pinout / Pin List Click Here (Member Only)

S-8261ABMMD-G3MT2U Details

Manufacturer Part Number:
S-8261ABMMD-G3MT2U
Rohs Code:
Yes
Part Life Cycle Code:
Active
Part Package Code:
SOT-23
Package Description:
SOT-23, 6 PIN
Pin Count:
6
ECCN Code:
EAR99
HTS Code:
8542.39.00.60
Factory Lead Time:
16 Weeks
Manufacturer:
ABLIC Inc.
YTEOL:
6.25
Additional Feature:
DETECTION THRESHOLD VOLTAGE IS 4.28V
Adjustable Threshold:
NO
Analog IC - Other Type:
BATTERY PROTECTOR
JESD-30 Code:
R-PDSO-G6
JESD-609 Code:
e3
Length:
2.9 mm
Number of Functions:
1
Number of Terminals:
6
Operating Temperature-Max:
85 °C
Operating Temperature-Min:
-40 °C
Package Body Material:
PLASTIC/EPOXY
Package Code:
LSSOP
Package Shape:
RECTANGULAR
Package Style:
SMALL OUTLINE, LOW PROFILE, SHRINK PITCH
Qualification Status:
Not Qualified
Seated Height-Max:
1.35 mm
Supply Voltage-Max (Vsup):
8 V
Supply Voltage-Min (Vsup):
1.5 V
Supply Voltage-Nom (Vsup):
1.8 V
Surface Mount:
YES
Technology:
CMOS
Temperature Grade:
INDUSTRIAL
Terminal Finish:
Tin (Sn)
Terminal Form:
GULL WING
Terminal Pitch:
0.95 mm
Terminal Position:
DUAL
Threshold Voltage-Nom:
+4.28V
Width:
1.6 mm

S-8261ABMMD-G3MT2U Frequently Asked Questions (FAQs)

ABLIC recommends a 4-layer PCB with a solid ground plane and a separate power plane for the IC. The input and output capacitors should be placed as close as possible to the IC, and the PCB traces should be kept short and wide to minimize inductance and resistance.
To ensure stability, it is recommended to use a minimum output capacitance of 10uF, and to place a 10nF capacitor in parallel with the output capacitor to filter out high-frequency noise. Additionally, the input voltage should be stable and within the recommended range.
The maximum ambient temperature range for the S-8261ABMMD-G3MT2U is -40°C to +125°C. However, the device should be derated for temperatures above 85°C to ensure reliable operation.
Yes, the S-8261ABMMD-G3MT2U is designed for high-reliability applications and is qualified to the AEC-Q100 standard for automotive applications. However, it is recommended to consult with ABLIC Inc. for specific requirements and testing protocols.
The S-8261ABMMD-G3MT2U has a thermal pad on the bottom of the package, which should be connected to a thermal plane on the PCB to dissipate heat. A thermal interface material (TIM) can be used to improve heat transfer between the IC and the thermal plane.

Trust Checks

Community Provided

System Verified

Community Approved

S-8261ABMMD-G3MT2U Overview

Use the download button to access the S-8261ABMMD-G3MT2U schematic symbol, PCB footprint, and 3D model.

To find more CAD model downloads similar to this part, try a partial part number search, like S-826, or try a keyword search, such as Power Management Circuits
