S29GL01GS10TFI010 - Infineon

Description: CYPRESS SEMICONDUCTOR - S29GL01GS10TFI010 - Flash Memory, NOR, Parallel NOR, 1 Gbit, 64M x 16bit, Parallel, TSOP, 56 Pins

Download S29GL01GS10TFI010 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints

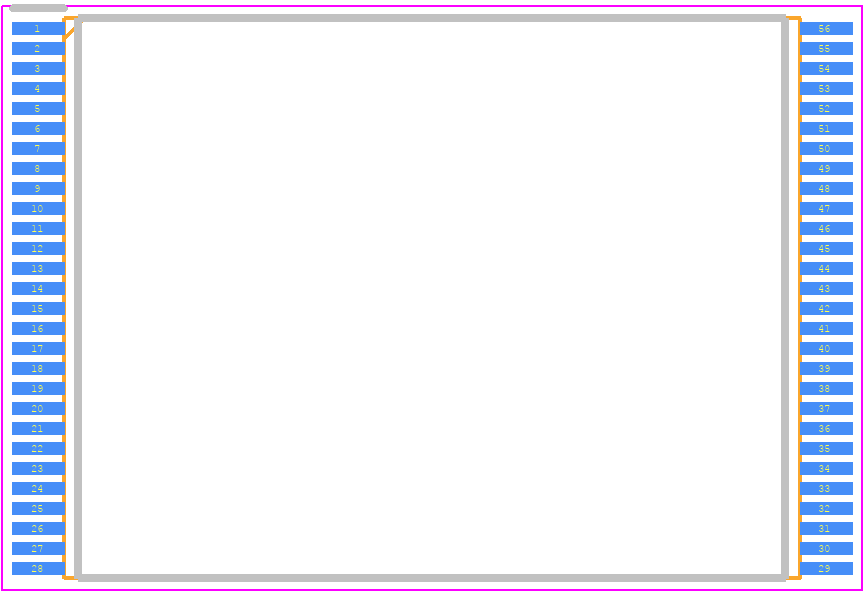

S29GL01GS10TFI010 - Infineon PCB footprint - Small Outline Packages - Small Outline Packages - 56-Pin TSOP 14 x 20mm
click to zoom
3D Models
S29GL01GS10TFI010 - Infineon  - 3D model - Small Outline Packages - 56-Pin TSOP 14 x 20mm
click to zoom

S29GL01GS10TFI010 Details

  • Manufacturer Part Number:

    S29GL01GS10TFI010

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.32.00.51

  • Manufacturer:

    Infineon Technologies AG

  • YTEOL:

    10

  • Access Time-Max:

    100 ns

  • Command User Interface:

    YES

  • Common Flash Interface:

    YES

  • Data Polling:

    YES

  • Data Retention Time-Min:

    20

  • Endurance:

    100000 Write/Erase Cycles

  • JESD-30 Code:

    R-PDSO-G56

  • JESD-609 Code:

    e3

  • Length:

    18.4 mm

  • Memory Density:

    1073741824 bit

  • Memory IC Type:

    FLASH

  • Memory Width:

    16

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    1

  • Number of Sectors/Size:

    1024

  • Number of Terminals:

    56

  • Number of Words:

    67108864 words

  • Number of Words Code:

    64000000

  • Operating Mode:

    ASYNCHRONOUS

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Organization:

    64MX16

  • Output Characteristics:

    3-STATE

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Equivalence Code:

    TSSOP56,.78,20

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Page Size:

    16 words

  • Parallel/Serial:

    PARALLEL

  • Programming Voltage:

    3 V

  • Ready/Busy:

    YES

  • Seated Height-Max:

    1.2 mm

  • Sector Size:

    64K

  • Standby Current-Max:

    0.0001 A

  • Supply Current-Max:

    0.1 mA

  • Supply Voltage-Max (Vsup):

    3.6 V

  • Supply Voltage-Min (Vsup):

    2.7 V

  • Supply Voltage-Nom (Vsup):

    3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Toggle Bit:

    YES

  • Type:

    NOR TYPE

  • Width:

    14 mm

S29GL01GS10TFI010 Frequently Asked Questions (FAQs)

  • The maximum operating temperature range for the S29GL01GS10TFI010 is -40°C to +85°C.
  • The HOLD# signal should be asserted low to pause the current operation and de-asserted high to resume the operation. During hold, the device will tri-state its outputs and ignore any input signals.
  • The WP# signal is used to prevent accidental writes to the device. When WP# is asserted low, the device will ignore any write commands and protect the data from being modified.
  • The S29GL01GS10TFI010 is a 1Gb (128MB) flash memory device, organized as 8192 blocks of 128KB each, with a page size of 2KB.
  • The typical programming time for the S29GL01GS10TFI010 is 2-3 seconds for a full chip erase, and 10-15 microseconds for a single page program.
