S29GL01GT10FHI010 - Infineon

Description: 1 Gb (128 MB)/512 Mb (64 MB) GL-T MIRRORBIT™ Flash Parallel, 3.0 V

Download S29GL01GT10FHI010 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints

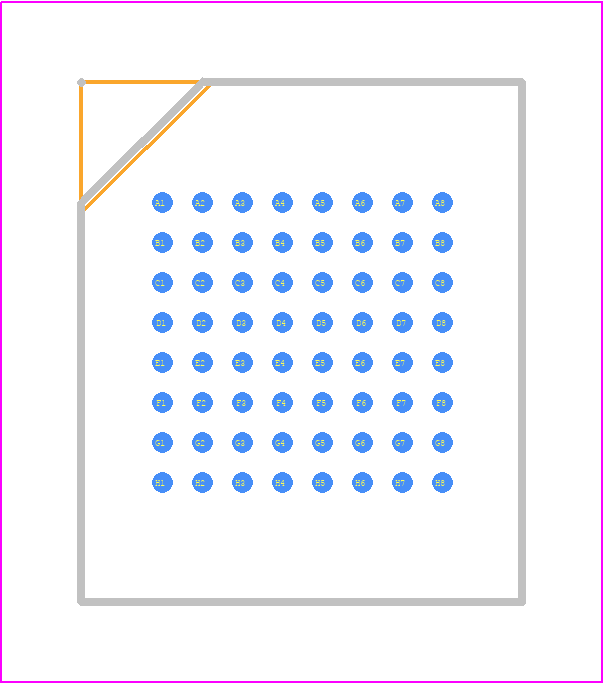

S29GL01GT10FHI010 - Infineon PCB footprint - BGA - BGA - (LAA064) 13 mm x 11 mm
click to zoom
3D Models
S29GL01GT10FHI010 - Infineon  - 3D model - BGA - (LAA064) 13 mm x 11 mm
click to zoom

S29GL01GT10FHI010 Details

  • Manufacturer Part Number:

    S29GL01GT10FHI010

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Thailand

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.32.00.51

  • Manufacturer:

    Infineon Technologies AG

  • YTEOL:

    10

  • Access Time-Max:

    100 ns

  • Boot Block:

    BOTTOM/TOP

  • JESD-30 Code:

    R-PBGA-B64

  • JESD-609 Code:

    e1

  • Length:

    13 mm

  • Memory Density:

    1073741824 bit

  • Memory IC Type:

    FLASH

  • Memory Width:

    16

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    1

  • Number of Terminals:

    64

  • Number of Words:

    67108864 words

  • Number of Words Code:

    64000000

  • Operating Mode:

    ASYNCHRONOUS

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Organization:

    64MX16

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    LBGA

  • Package Shape:

    RECTANGULAR

  • Package Style:

    GRID ARRAY, LOW PROFILE

  • Parallel/Serial:

    PARALLEL

  • Peak Reflow Temperature (Cel):

    260

  • Programming Voltage:

    2.7 V

  • Seated Height-Max:

    1.4 mm

  • Supply Current-Max:

    0.06 mA

  • Supply Voltage-Max (Vsup):

    3.6 V

  • Supply Voltage-Min (Vsup):

    2.7 V

  • Supply Voltage-Nom (Vsup):

    3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Tin/Silver/Copper (Sn/Ag/Cu)

  • Terminal Form:

    BALL

  • Terminal Pitch:

    1 mm

  • Terminal Position:

    BOTTOM

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Type:

    NOR TYPE

  • Width:

    11 mm

S29GL01GT10FHI010 Frequently Asked Questions (FAQs)

  • The maximum operating temperature range for the S29GL01GT10FHI010 is -40°C to +85°C.
  • The hold signal (HOLD#) should be asserted low to pause the current operation, and de-asserted high to resume the operation.
  • The write protect (WP#) signal is used to prevent accidental writes to the device. When WP# is low, the device is in write-protect mode, and when WP# is high, the device is in write-enable mode.
  • To perform a sector erase operation, send the erase command (0x20) followed by the sector address, and then wait for the erase operation to complete.
  • The recommended power-up sequence is to apply VCC first, followed by VPP, and then the clock signal (CLK).
