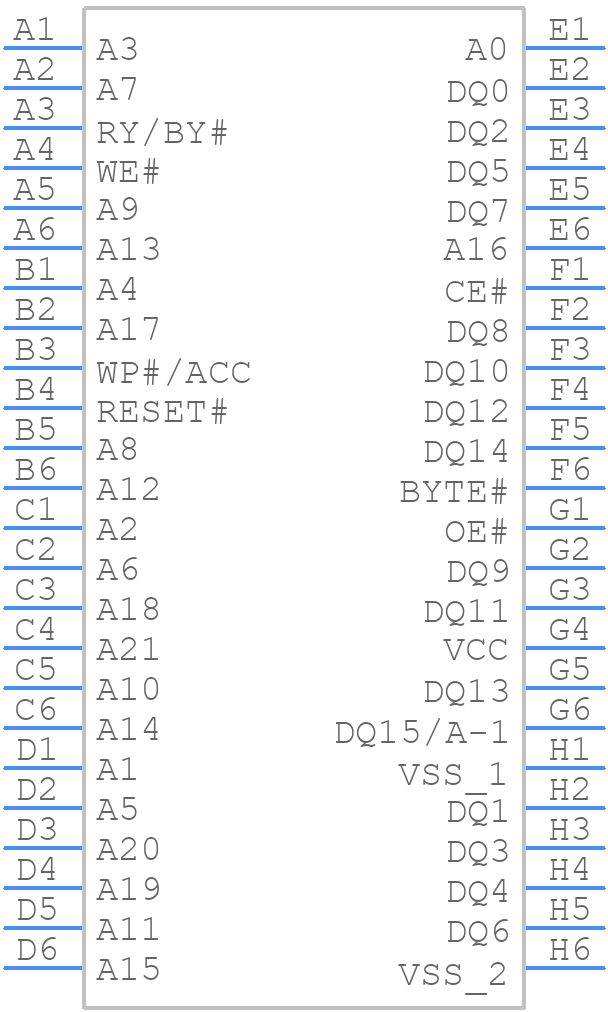

S29GL064N90BFI042 - Infineon

S29GL064N90BFI042 Details

• Manufacturer Part Number:

  S29GL064N90BFI042

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Obsolete

• ECCN Code:

  EAR99

• HTS Code:

  8542.32.00.51

• Manufacturer:

  Infineon Technologies AG

• YTEOL:

  0

• Access Time-Max:

  90 ns

• Alternate Memory Width:

  8

• Boot Block:

  BOTTOM

• Command User Interface:

  YES

• Common Flash Interface:

  YES

• Data Polling:

  YES

• JESD-30 Code:

  R-PBGA-B48

• JESD-609 Code:

  e1

• Length:

  8.15 mm

• Memory Density:

  67108864 bit

• Memory IC Type:

  FLASH

• Memory Width:

  16

• Moisture Sensitivity Level:

  3

• Number of Functions:

  1

• Number of Sectors/Size:

  8,127

• Number of Terminals:

  48

• Number of Words:

  4194304 words

• Number of Words Code:

  4000000

• Operating Mode:

  ASYNCHRONOUS

• Operating Temperature-Max:

  85 °C

• Operating Temperature-Min:

  -40 °C

• Organization:

  4MX16

• Package Body Material:

  PLASTIC/EPOXY

• Package Code:

  VFBGA

• Package Equivalence Code:

  BGA48,6X8,32

• Package Shape:

  RECTANGULAR

• Package Style:

  GRID ARRAY, VERY THIN PROFILE, FINE PITCH

• Page Size:

  8/16 words

• Parallel/Serial:

  PARALLEL

• Peak Reflow Temperature (Cel):

  260

• Programming Voltage:

  3 V

• Qualification Status:

  Not Qualified

• Ready/Busy:

  YES

• Screening Level:

  AEC-Q100

• Seated Height-Max:

  1 mm

• Sector Size:

  8K,64K

• Standby Current-Max:

  0.000005 A

• Supply Current-Max:

  0.05 mA

• Supply Voltage-Max (Vsup):

  3.6 V

• Supply Voltage-Min (Vsup):

  2.7 V

• Supply Voltage-Nom (Vsup):

  3 V

• Surface Mount:

  YES

• Technology:

  CMOS

• Temperature Grade:

  INDUSTRIAL

• Terminal Finish:

  Tin/Silver/Copper (Sn/Ag/Cu)

• Terminal Form:

  BALL

• Terminal Pitch:

  0.8 mm

• Terminal Position:

  BOTTOM

• Time@Peak Reflow Temperature-Max (s):

  40

• Toggle Bit:

  YES

• Type:

  NOR TYPE

• Width:

  6.15 mm
