S29GL064S80TFIV20 - Infineon

Description: NOR Flash 64MB 3V, 80ns Parallel NOR Flash

Download S29GL064S80TFIV20 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints

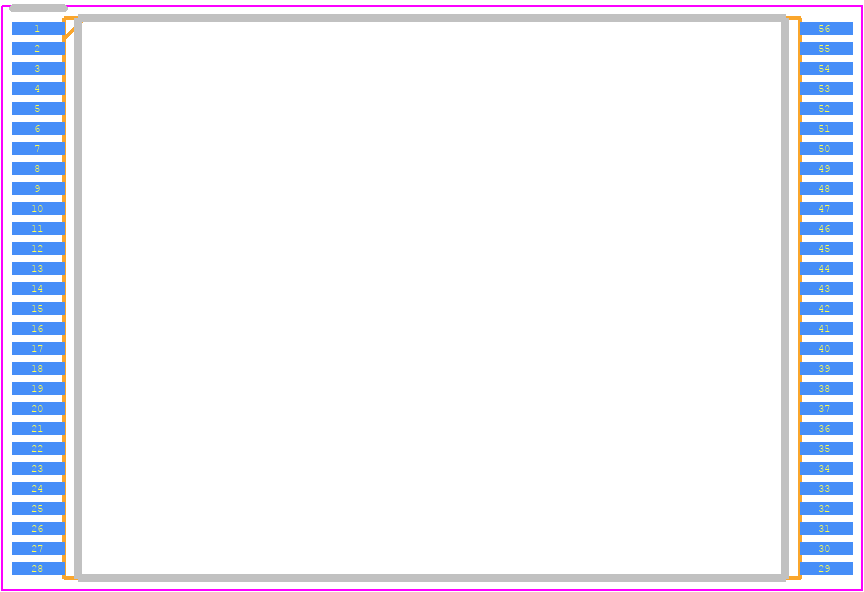

S29GL064S80TFIV20 - Infineon PCB footprint - Small Outline Packages - Small Outline Packages - TSO56_TSOP_14X20
click to zoom
3D Models
S29GL064S80TFIV20 - Infineon  - 3D model - Small Outline Packages - TSO56_TSOP_14X20
click to zoom

S29GL064S80TFIV20 Details

  • Manufacturer Part Number:

    S29GL064S80TFIV20

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.32.00.51

  • Factory Lead Time:

    4 Weeks

  • Manufacturer:

    Infineon Technologies AG

  • YTEOL:

    10

  • Access Time-Max:

    80 ns

  • JESD-30 Code:

    R-PDSO-G56

  • JESD-609 Code:

    e3

  • Length:

    18.4 mm

  • Memory Density:

    67108864 bit

  • Memory IC Type:

    FLASH

  • Memory Width:

    16

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    1

  • Number of Terminals:

    56

  • Number of Words:

    4194304 words

  • Number of Words Code:

    4000000

  • Operating Mode:

    ASYNCHRONOUS

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Organization:

    4MX16

  • Output Characteristics:

    3-STATE

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Equivalence Code:

    TSSOP56,.8,20

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Parallel/Serial:

    PARALLEL

  • Programming Voltage:

    3 V

  • Seated Height-Max:

    1.2 mm

  • Supply Voltage-Max (Vsup):

    3.6 V

  • Supply Voltage-Min (Vsup):

    2.7 V

  • Supply Voltage-Nom (Vsup):

    3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Type:

    NOR TYPE

  • Width:

    14 mm

S29GL064S80TFIV20 Frequently Asked Questions (FAQs)

  • The maximum operating temperature range for the S29GL064S80TFIV20 is -40°C to +85°C.
  • The HOLD# signal should be asserted low to pause the current read or write operation. De-asserting HOLD# resumes the operation from where it was paused.
  • The recommended power-up sequence is to apply VCC first, followed by VPP (if used), and then the clock signal (CLK).
  • The device density and configuration can be determined by reading the Device ID (0x01C2) and the Configuration Register (0x02) using the Read Identification (RDID) command.
  • The WP# signal is used to protect the status register and the configuration register from being written. When WP# is low, these registers are write-protected.
