S29GL256S90TFI010 - Infineon

Description: Flash,256Mbit,parallel,90ns,3V,TSOP56 S29GL256S90TFI010, CFI Flash Memory, 16M x 16 bit, 32M x 8 bit, 8M x 32 bit 256Mbit, 90ns, 2.7 → 3.6 V, 56-Pin

Download S29GL256S90TFI010 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints

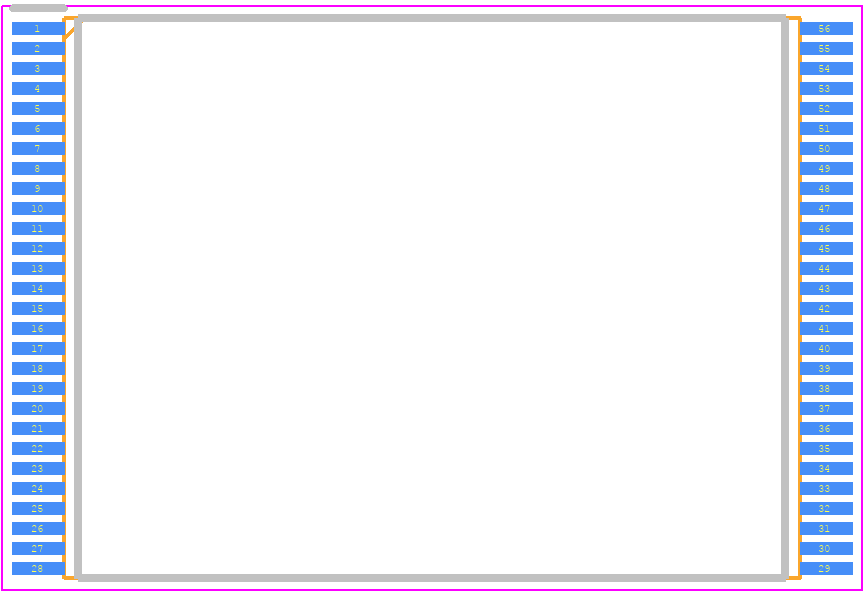

S29GL256S90TFI010 - Infineon PCB footprint - Small Outline Packages - Small Outline Packages - 56-Pin TSOP 14 x 20mm
click to zoom
3D Models
S29GL256S90TFI010 - Infineon  - 3D model - Small Outline Packages - 56-Pin TSOP 14 x 20mm
click to zoom

S29GL256S90TFI010 Details

  • Manufacturer Part Number:

    S29GL256S90TFI010

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.32.00.51

  • Manufacturer:

    Infineon Technologies AG

  • YTEOL:

    10

  • Access Time-Max:

    90 ns

  • Command User Interface:

    YES

  • Common Flash Interface:

    YES

  • Data Polling:

    YES

  • Data Retention Time-Min:

    20

  • Endurance:

    100000 Write/Erase Cycles

  • JESD-30 Code:

    R-PDSO-G56

  • JESD-609 Code:

    e3

  • Length:

    18.4 mm

  • Memory Density:

    268435456 bit

  • Memory IC Type:

    FLASH

  • Memory Width:

    16

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    1

  • Number of Sectors/Size:

    256

  • Number of Terminals:

    56

  • Number of Words:

    16777216 words

  • Number of Words Code:

    16000000

  • Operating Mode:

    ASYNCHRONOUS

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Organization:

    16MX16

  • Output Characteristics:

    3-STATE

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Equivalence Code:

    TSSOP56,.78,20

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Page Size:

    16 words

  • Parallel/Serial:

    PARALLEL

  • Programming Voltage:

    3 V

  • Ready/Busy:

    YES

  • Seated Height-Max:

    1.2 mm

  • Sector Size:

    64K

  • Standby Current-Max:

    0.0001 A

  • Supply Current-Max:

    0.1 mA

  • Supply Voltage-Max (Vsup):

    3.6 V

  • Supply Voltage-Min (Vsup):

    2.7 V

  • Supply Voltage-Nom (Vsup):

    3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Toggle Bit:

    YES

  • Type:

    NOR TYPE

  • Width:

    14 mm

S29GL256S90TFI010 Frequently Asked Questions (FAQs)

  • The maximum operating temperature range for the S29GL256S90TFI010 is -40°C to +85°C.
  • The HOLD# signal should be asserted low to pause the current operation and de-asserted high to resume the operation. During hold, the device will tri-state its outputs and ignore any input signals.
  • The WP# signal is used to prevent accidental writes to the device. When WP# is asserted low, the device will ignore any write commands and protect the data from being altered.
  • The S29GL256S90TFI010 is a 256Mbit (32M x 8) flash memory device, organized as 2048 blocks of 128K bytes each.
  • The typical programming time for the S29GL256S90TFI010 is 10-15 seconds for a full chip erase and 10-20 microseconds for a single byte program operation.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

S29GL256S90TFI010 Overview

Use the download button to access the S29GL256S90TFI010 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like S29GL, or try a keyword search, such as Flash Memories
