S29GL512T10FHI013 - Infineon

Description: NOR Flash Nor

Download S29GL512T10FHI013 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints

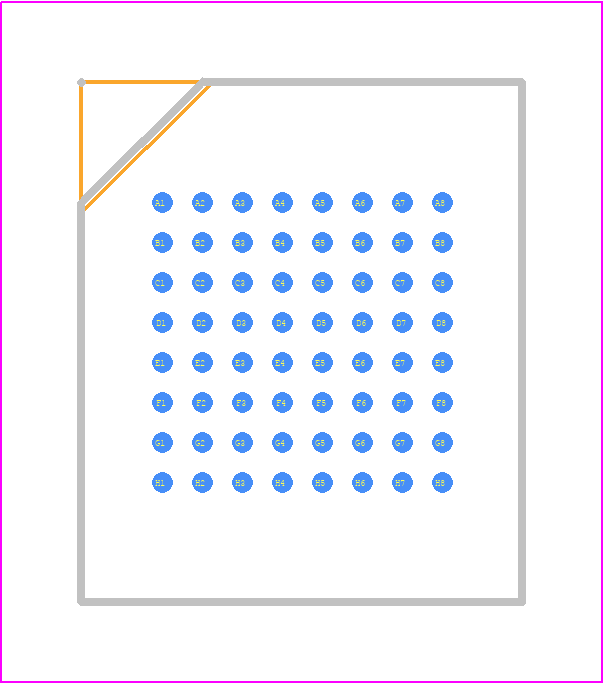

S29GL512T10FHI013 - Infineon PCB footprint - BGA - BGA - (FBGA) (002-15536)-1
click to zoom
3D Models
S29GL512T10FHI013 - Infineon  - 3D model - BGA - (FBGA) (002-15536)-1
click to zoom

S29GL512T10FHI013 Details

  • Manufacturer Part Number:

    S29GL512T10FHI013

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.32.00.51

  • Factory Lead Time:

    10 Weeks

  • Manufacturer:

    Infineon Technologies AG

  • YTEOL:

    10

  • Access Time-Max:

    100 ns

  • Alternate Memory Width:

    8

  • Boot Block:

    BOTTOM/TOP

  • JESD-30 Code:

    R-PBGA-B64

  • JESD-609 Code:

    e1

  • Length:

    13 mm

  • Memory Density:

    536870912 bit

  • Memory IC Type:

    FLASH

  • Memory Width:

    16

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    1

  • Number of Terminals:

    64

  • Number of Words:

    33554432 words

  • Number of Words Code:

    32000000

  • Operating Mode:

    ASYNCHRONOUS

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Organization:

    32MX16

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    LBGA

  • Package Shape:

    RECTANGULAR

  • Package Style:

    GRID ARRAY, LOW PROFILE

  • Parallel/Serial:

    PARALLEL

  • Peak Reflow Temperature (Cel):

    260

  • Programming Voltage:

    2.7 V

  • Seated Height-Max:

    1.4 mm

  • Supply Current-Max:

    0.06 mA

  • Supply Voltage-Max (Vsup):

    3.6 V

  • Supply Voltage-Min (Vsup):

    2.7 V

  • Supply Voltage-Nom (Vsup):

    3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Tin/Silver/Copper (Sn/Ag/Cu)

  • Terminal Form:

    BALL

  • Terminal Pitch:

    1 mm

  • Terminal Position:

    BOTTOM

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Type:

    NOR TYPE

  • Width:

    11 mm

S29GL512T10FHI013 Frequently Asked Questions (FAQs)

  • The maximum operating temperature range for the S29GL512T10FHI013 is -40°C to +85°C.
  • The HOLD# signal should be asserted low to pause the current operation, and de-asserted high to resume the operation. During hold, the device will tri-state its outputs and ignore any input signals.
  • The WP# signal is used to prevent accidental writes to the device. When WP# is asserted low, the device will ignore any write commands and protect the contents of the memory.
  • The S29GL512T10FHI013 is a 512 Mbit (64 Mbyte) flash memory device, organized as 8192 blocks of 64 Kbits each. The device density and organization can be determined by reading the device ID and querying the block protection status.
  • The recommended power-up sequence is to apply VCC first, followed by VPP (if used), and then the clock signal. The device should be in a reset state (RST# asserted low) during power-up.
