Part Image

S5BC-13-F - Diodes Incorporated

Description: Diodes Inc S5BC-13-F Switching Diode, 5A 100V, 2-Pin SMC

Download S5BC-13-F Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints

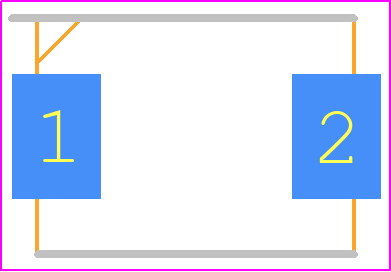

S5BC-13-F - Diodes Incorporated PCB footprint - Diodes Moulded - Diodes Moulded - SMC
click to zoom
3D Models
S5BC-13-F - Diodes Incorporated  - 3D model - Diodes Moulded - SMC
click to zoom

S5BC-13-F Details

  • Manufacturer Part Number:

    S5BC-13-F

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    SMC, 2 PIN

  • Pin Count:

    2

  • Manufacturer Package Code:

    SMC

  • Country Of Origin:

    Mainland China

  • ECCN Code:

    EAR99

  • HTS Code:

    8541.10.00.80

  • Manufacturer:

    Diodes Incorporated

  • YTEOL:

    6

  • Application:

    GENERAL PURPOSE

  • Configuration:

    SINGLE

  • Diode Element Material:

    SILICON

  • Diode Type:

    RECTIFIER DIODE

  • Forward Voltage-Max (VF):

    1.15 V

  • JESD-30 Code:

    R-PDSO-C2

  • JESD-609 Code:

    e3

  • Moisture Sensitivity Level:

    1

  • Non-rep Pk Forward Current-Max:

    100 A

  • Number of Elements:

    1

  • Number of Phases:

    1

  • Number of Terminals:

    2

  • Operating Temperature-Max:

    150 °C

  • Operating Temperature-Min:

    -65 °C

  • Output Current-Max:

    5 A

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Rep Pk Reverse Voltage-Max:

    100 V

  • Surface Mount:

    YES

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    C BEND

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

S5BC-13-F Frequently Asked Questions (FAQs)

  • A good PCB layout for the S5BC-13-F should include a solid ground plane, wide traces for power and ground, and a thermal relief pattern under the IC to facilitate heat dissipation.
  • To ensure reliable operation across the full temperature range, ensure that the device is operated within the recommended voltage and current limits, and that the PCB is designed to minimize thermal gradients and hotspots.
  • The S5BC-13-F has built-in ESD protection, but additional external protection measures such as TVS diodes or ESD arrays may be necessary depending on the application. Latch-up prevention can be achieved through careful PCB design and layout, as well as the use of latch-up immune devices.
  • Yes, the S5BC-13-F is suitable for high-reliability and automotive applications, but additional testing and qualification may be required to meet specific industry standards such as AEC-Q100 or IATF 16949.
  • The S5BC-13-F should be stored in a dry, cool place, away from direct sunlight and moisture. Handling should be done with anti-static precautions, and the device should be soldered using a controlled soldering process to prevent damage.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

S5BC-13-F Overview

Use the download button to access the S5BC-13-F schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like S5BC-, or try a keyword search, such as Rectifier Diodes

Parts related to S5BC-13-F

Showing 0 results

S5BC-13-F Alternates

Showing results

Image Part Number Model
Part Image S5BC-7 Diodes Incorporated

Rectifier Diode, 1 Phase, 1 Element, 5A, 100V V(RRM), Silicon
