SA04-12SURKWA - Kingbright

Description: LED Displays & Accessories .4" SINGLE DIGIT RED LED DISPLAY 75 mW,30 mA,5 V,-40°C To +85°C

Download SA04-12SURKWA Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

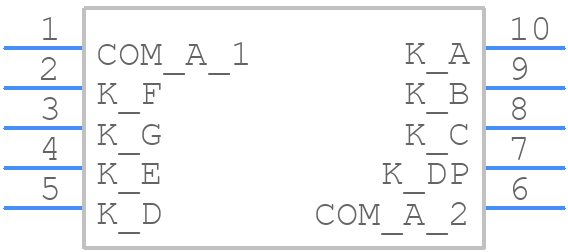

SA04-12SURKWA - Kingbright - PCB symbol
click to zoom
PCB Footprints

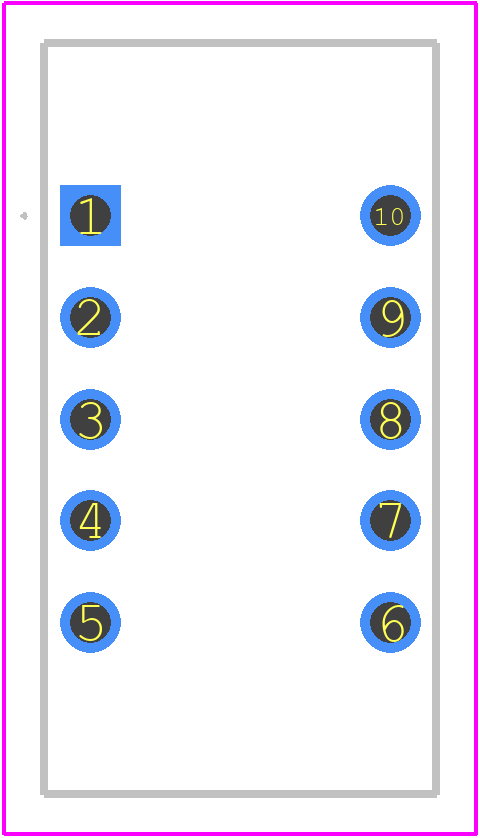

SA04-12SURKWA - Kingbright PCB footprint - Other - Other - SA04-12SURKWA-2
click to zoom

SA04-12SURKWA Details

  • Manufacturer Part Number:

    SA04-12SURKWA

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    ROHS COMPLIANT PACKAGE-10

  • Country Of Origin:

    Mainland China

  • HTS Code:

    8541.40.20.00

  • Manufacturer:

    Kingbright

  • YTEOL:

    6

  • Color:

    HYPER RED

  • Color@Wavelength:

    Red

  • Configuration:

    COMMON ANODE, 1 DIGIT WITH DECIMAL POINT

  • Display Height:

    10.16 mm

  • Forward Current-Max:

    0.03 A

  • Number of Functions:

    1

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Optoelectronic Device Type:

    7 SEG NUMERIC LED DISPLAY

SA04-12SURKWA Frequently Asked Questions (FAQs)

  • The recommended soldering temperature is 260°C (500°F) with a soldering time of 3-5 seconds. It's essential to follow the recommended soldering profile to prevent damage to the LED.
  • While the SA04-12SURKWA is suitable for indoor use, it's not recommended for outdoor applications due to its lack of environmental protection. If outdoor use is required, consider using a LED indicator with a higher IP rating or additional protection measures.
  • The maximum allowable voltage for the SA04-12SURKWA is 5V. Exceeding this voltage may damage the LED or reduce its lifespan.
  • Yes, the SA04-12SURKWA can be driven with a PWM (Pulse-Width Modulation) signal. However, ensure the PWM frequency is within the recommended range (typically above 100 Hz) to prevent visible flicker.
  • The typical lifespan of the SA04-12SURKWA is around 50,000 to 100,000 hours, depending on operating conditions, such as temperature, current, and voltage.
