SA08-11SRWA - Kingbright

Description: Displays Module 1DIGIT 9LED SB. Red CA 12-Pin DIP Module Tube

Download SA08-11SRWA Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

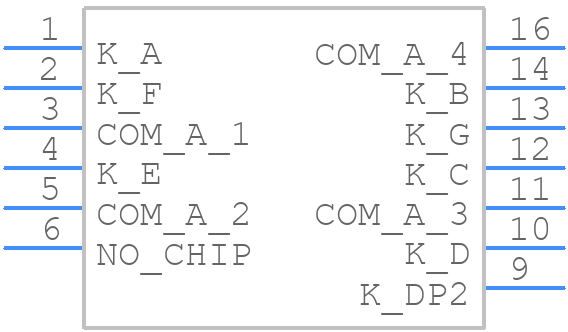

SA08-11SRWA - Kingbright - PCB symbol
click to zoom
PCB Footprints

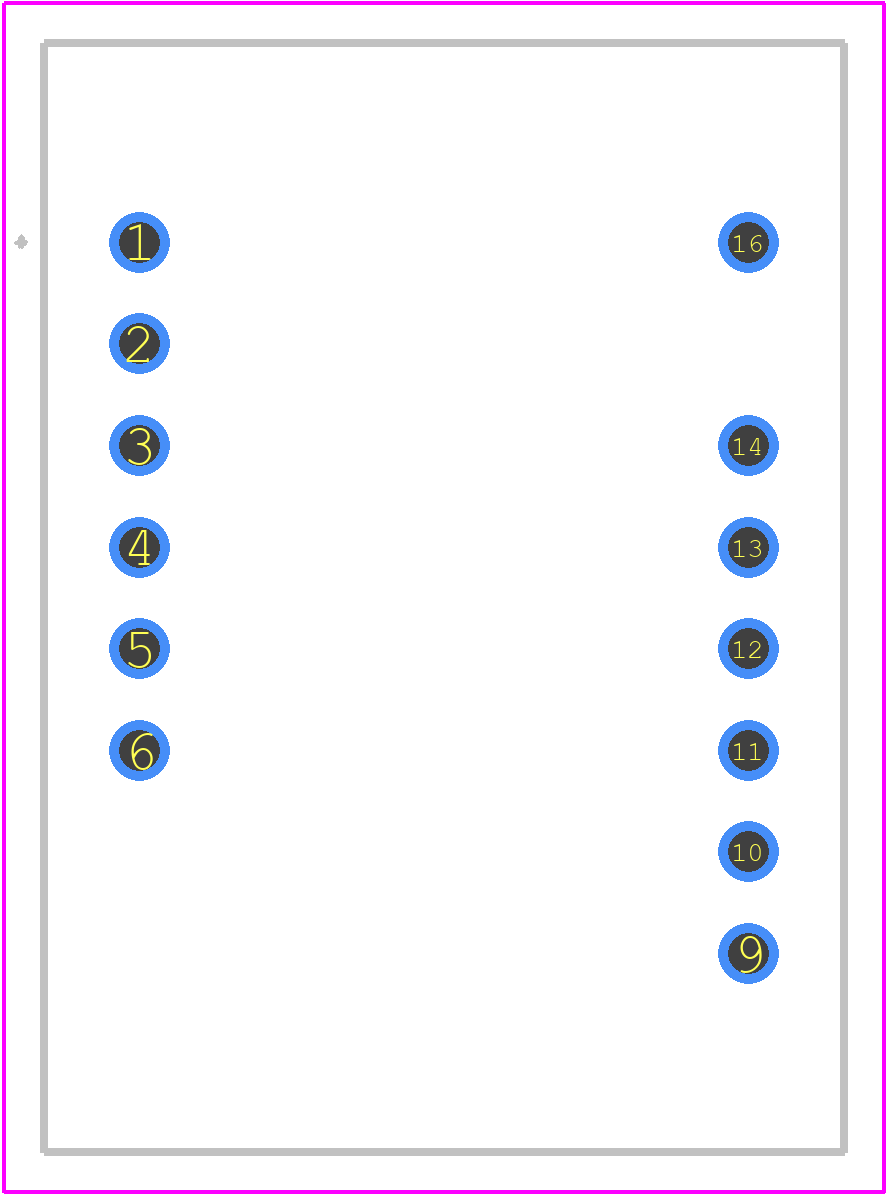

SA08-11SRWA - Kingbright PCB footprint - Other - Other - SA08-11SRWA-1
click to zoom
3D Models
SA08-11SRWA - Kingbright - 3D model - Other - SA08-11SRWA-1
click to zoom

SA08-11SRWA Details

  • Manufacturer Part Number:

    SA08-11SRWA

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Package Description:

    ROHS COMPLIANT PACKAGE-16

  • HTS Code:

    8541.40.20.00

  • Manufacturer:

    Kingbright

  • YTEOL:

    0

  • Additional Feature:

    IC COMPATIBLE

  • Color:

    SUPER BRIGHT RED

  • Configuration:

    COMMON ANODE, 1 DIGIT WITH DECIMAL POINT

  • Display Height:

    20.32 mm

  • Forward Current-Max:

    0.03 A

  • Number of Functions:

    1

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Optoelectronic Device Type:

    7 SEG NUMERIC LED DISPLAY

SA08-11SRWA Frequently Asked Questions (FAQs)

  • The recommended storage temperature for SA08-11SRWA is -20°C to 30°C (-4°F to 86°F) to prevent damage to the LED.
  • Yes, SA08-11SRWA is suitable for outdoor applications, but it's recommended to use a suitable enclosure or coating to protect the LED from moisture and UV radiation.
  • The maximum forward current for SA08-11SRWA is 30mA, but it's recommended to operate at a lower current (e.g., 20mA) for longer lifespan and reliability.
  • Yes, SA08-11SRWA is compatible with lead-free soldering, but it's recommended to follow the recommended soldering profile to prevent damage to the LED.
  • The viewing angle of SA08-11SRWA is 120°, which means the LED emits light in a wide angle, making it suitable for indicator and backlighting applications.

Trust Checks

This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

SA08-11SRWA Overview

Use the download button to access the SA08-11SRWA schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like SA08-, or try a keyword search, such as LED Displays
