SA08-11SURKWA - Kingbright

Description: 7-Seg Display 1-Digit 20.32mm Red Kingbright SA08-11SURKWA 7-Segment LED Display, CA Red 61 mcd RH DP 20.32mm

Download SA08-11SURKWA Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

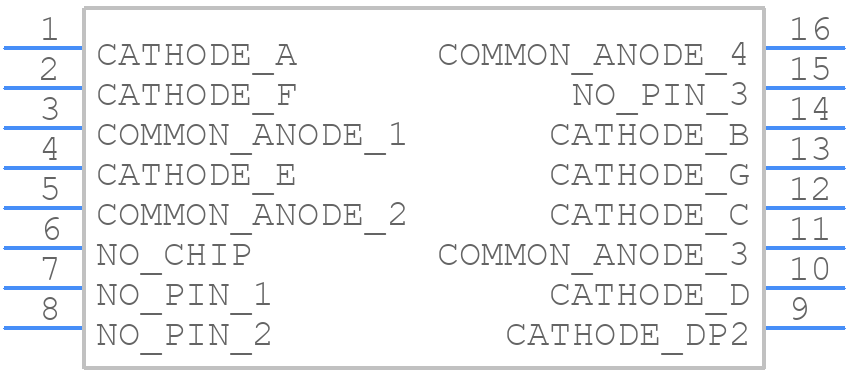

SA08-11SURKWA - Kingbright - PCB symbol
click to zoom
PCB Footprints

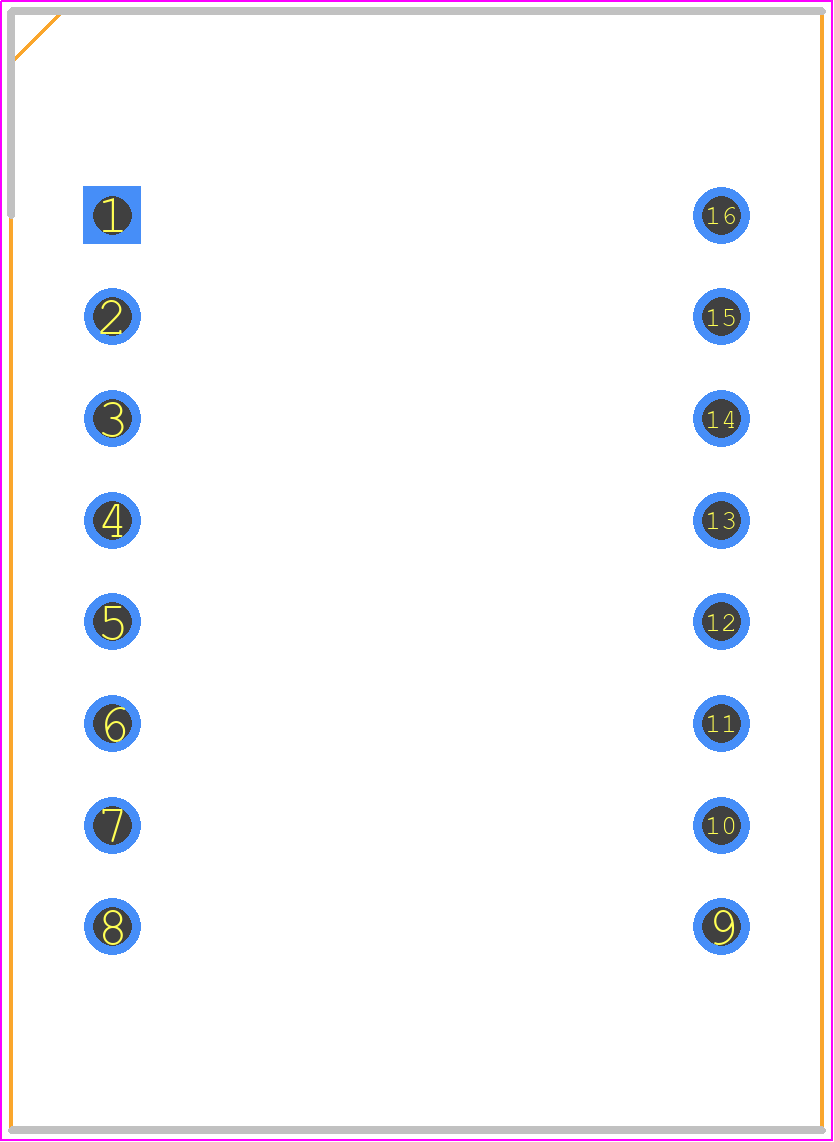

SA08-11SURKWA - Kingbright PCB footprint - Dual-In-Line Sockets - Dual-In-Line Sockets - 20.32mm (0.8INCH) SINGLE DIGIT NUMERIC DISPLAY
click to zoom
3D Models
SA08-11SURKWA - Kingbright - 3D model - Dual-In-Line Sockets - 20.32mm (0.8INCH) SINGLE DIGIT NUMERIC DISPLAY
click to zoom

SA08-11SURKWA Details

  • Manufacturer Part Number:

    SA08-11SURKWA

  • Part Life Cycle Code:

    Transferred

  • Package Description:

    ROHS COMPLIANT PACKAGE-16

  • Country Of Origin:

    Mainland China

  • HTS Code:

    8541.40.20.00

  • Manufacturer:

    Kingbright

  • YTEOL:

    6

  • Color:

    HYPER RED

  • Configuration:

    COMMON ANODE, 1 DIGIT WITH DECIMAL POINT

  • Display Height:

    20.32 mm

  • Forward Current-Max:

    0.03 A

  • Number of Functions:

    1

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Optoelectronic Device Type:

    7 SEG NUMERIC LED DISPLAY

SA08-11SURKWA Frequently Asked Questions (FAQs)

  • The recommended storage temperature for SA08-11SURKWA is -20°C to 40°C, with a relative humidity of 60% or less.
  • Yes, SA08-11SURKWA is suitable for outdoor applications due to its high brightness and weather-resistant epoxy resin. However, it's essential to follow proper installation and sealing guidelines to ensure reliability.
  • The typical forward voltage drop for SA08-11SURKWA is around 2.0-2.5V at a forward current of 20mA.
  • Yes, SA08-11SURKWA is compatible with lead-free soldering processes, with a peak reflow temperature of 260°C.
  • The recommended soldering time for SA08-11SURKWA is within 3 seconds, with a soldering temperature of 240°C ± 5°C.

Trust Checks

This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

SA08-11SURKWA Overview

Use the download button to access the SA08-11SURKWA schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like SA08-, or try a keyword search, such as LED Displays
