SA08-12EWA - Kingbright

Description: LED Displays & Accessories HI EFF RED DIFFUSED 1 DIGIT

Download SA08-12EWA Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

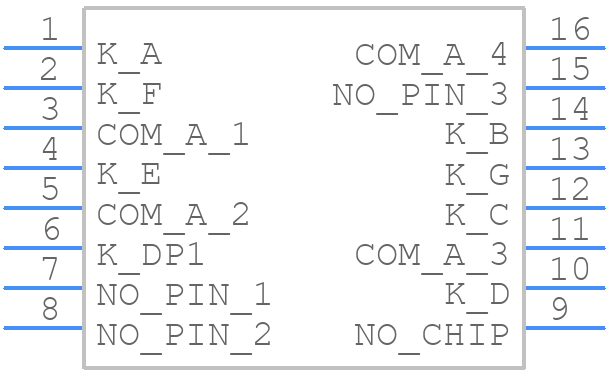

SA08-12EWA - Kingbright - PCB symbol
click to zoom
PCB Footprints

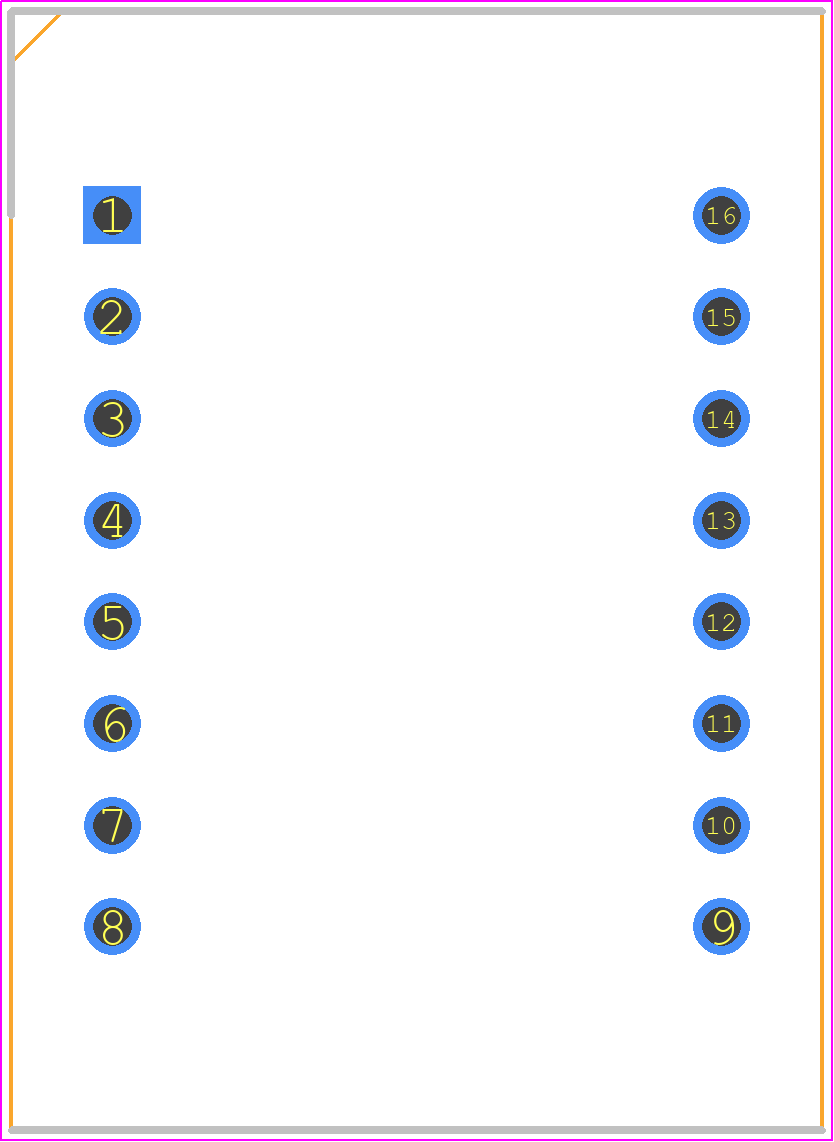

SA08-12EWA - Kingbright PCB footprint - Dual-In-Line Sockets - Dual-In-Line Sockets - 20.32mm (0.8INCH)SINGLE DIGIT NUMERIC DISPLAY
click to zoom

SA08-12EWA Details

  • Manufacturer Part Number:

    SA08-12EWA

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    ROHS COMPLIANT PACKAGE-16

  • Country Of Origin:

    Mainland China

  • HTS Code:

    8541.40.20.00

  • Manufacturer:

    Kingbright

  • YTEOL:

    6

  • Additional Feature:

    IC COMPATIBLE

  • Color:

    HIGH EFFICIENCY RED

  • Color@Wavelength:

    Orange

  • Configuration:

    COMMON ANODE, 1 DIGIT WITH DECIMAL POINT

  • Display Height:

    20.32 mm

  • Forward Current-Max:

    0.03 A

  • Number of Functions:

    1

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Optoelectronic Device Type:

    7 SEG NUMERIC LED DISPLAY

SA08-12EWA Frequently Asked Questions (FAQs)

  • The recommended storage temperature for SA08-12EWA is -20°C to 30°C, with a relative humidity of 60% or less.
  • Yes, SA08-12EWA is suitable for outdoor applications, but it's recommended to use a protective coating or enclosure to prevent moisture and UV damage.
  • The maximum soldering temperature for SA08-12EWA is 260°C for 3 seconds, with a peak temperature of 240°C.
  • Yes, SA08-12EWA is compatible with lead-free soldering, but it's recommended to follow the manufacturer's guidelines for lead-free soldering profiles.
  • The typical lifespan of SA08-12EWA is 50,000 hours or more, depending on operating conditions and usage.
