SA08-12SURKWA - Kingbright

Description: LED Displays & Accessories .8" SINGLE DIGIT RED LED DISPLAY

Download SA08-12SURKWA Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

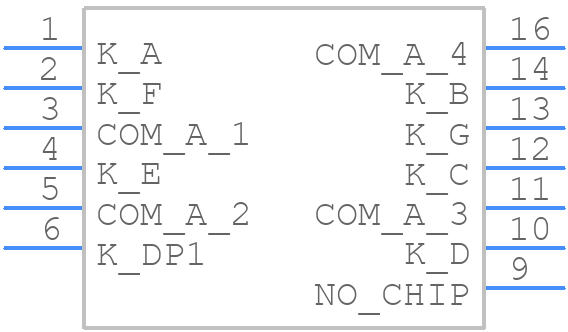

SA08-12SURKWA - Kingbright - PCB symbol
click to zoom
PCB Footprints

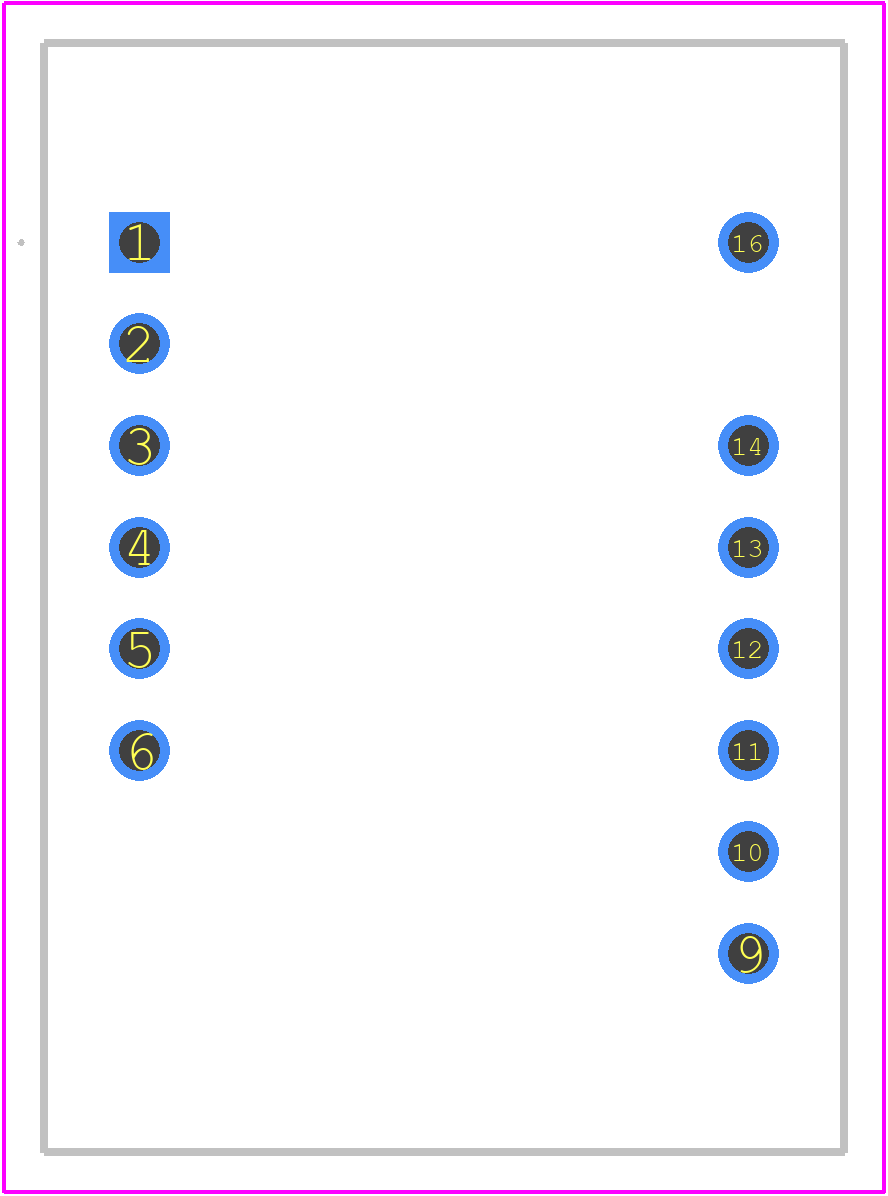

SA08-12SURKWA - Kingbright PCB footprint - Other - Other - SA08-12SURKWA-2
click to zoom
3D Models
SA08-12SURKWA - Kingbright - 3D model - Other - SA08-12SURKWA-2
click to zoom

SA08-12SURKWA Details

  • Manufacturer Part Number:

    SA08-12SURKWA

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    ROHS COMPLIANT PACKAGE-16

  • Country Of Origin:

    Mainland China

  • HTS Code:

    8541.40.20.00

  • Manufacturer:

    Kingbright

  • YTEOL:

    6

  • Color:

    HYPER RED

  • Configuration:

    COMMON ANODE, 1 DIGIT WITH DECIMAL POINT

  • Display Height:

    20.32 mm

  • Forward Current-Max:

    0.03 A

  • Number of Functions:

    1

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Optoelectronic Device Type:

    7 SEG NUMERIC LED DISPLAY

SA08-12SURKWA Frequently Asked Questions (FAQs)

  • The recommended storage temperature for SA08-12SURKWA is -20°C to 40°C, with a relative humidity of 60% or less.
  • While SA08-12SURKWA is not specifically designed for outdoor use, it can be used in outdoor applications with proper protection from environmental factors such as moisture, UV, and extreme temperatures. A clear resin or conformal coating can be applied to protect the LED.
  • The maximum soldering temperature for SA08-12SURKWA is 260°C for 3 seconds. Exceeding this temperature can cause damage to the LED.
  • While it is technically possible to drive SA08-12SURKWA with a higher current, it is not recommended as it can reduce the LED's lifespan and increase the risk of overheating. The recommended operating current is 20mA to ensure optimal performance and reliability.
  • Yes, SA08-12SURKWA is compatible with lead-free soldering processes. Kingbright ensures that their LEDs comply with RoHS and REACH regulations, making them suitable for use in lead-free soldering applications.
