SA08-21SURKWA - Kingbright

Description: Display Modules - LED Character and Numeric Red 7-Segment 1 Character Common Anode 1.95V 20mA 0.984" H x 0.732" W x 0.417" D (25.00mm x 18.60mm x 10.60mm) 18-DIP (0.600", 15.24mm)

Download SA08-21SURKWA Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

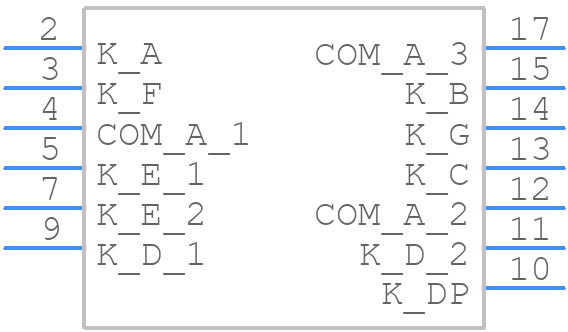

SA08-21SURKWA - Kingbright - PCB symbol
click to zoom
PCB Footprints

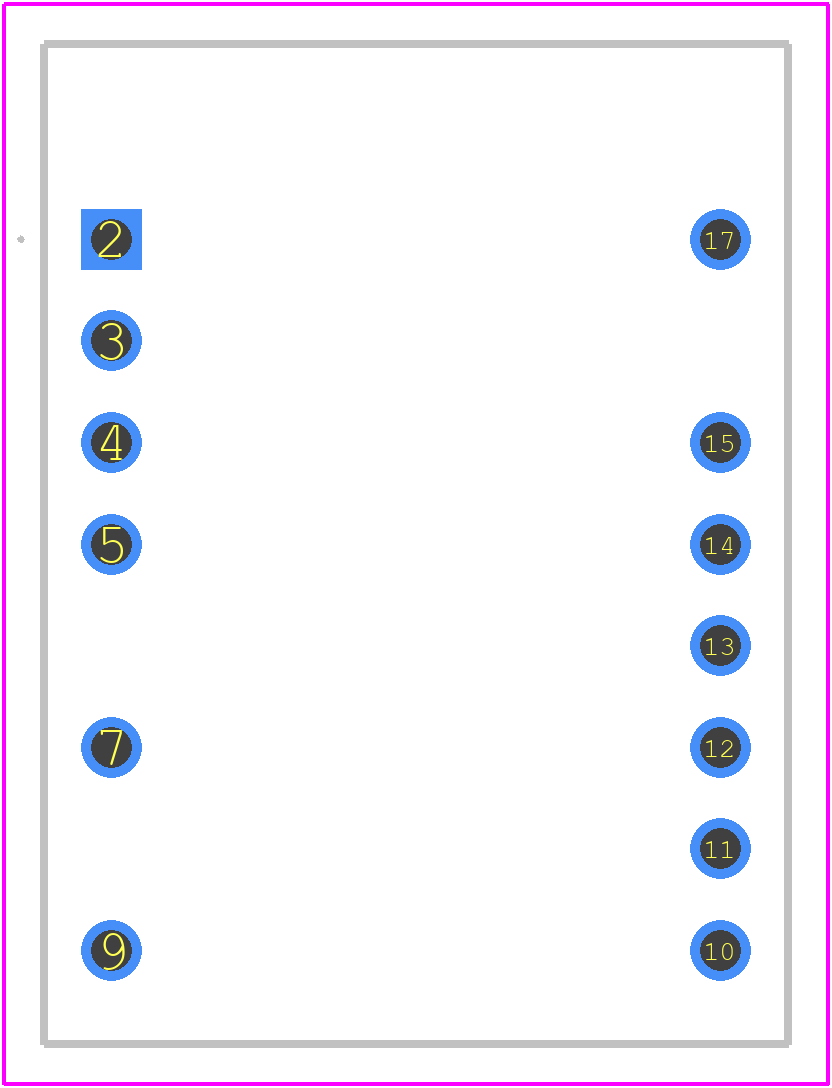

SA08-21SURKWA - Kingbright PCB footprint - Other - Other - SA08-21SURKWA-1
click to zoom
3D Models
SA08-21SURKWA - Kingbright - 3D model - Other - SA08-21SURKWA-1
click to zoom

SA08-21SURKWA Details

  • Manufacturer Part Number:

    SA08-21SURKWA

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    ROHS COMPLIANT PACKAGE-13

  • Country Of Origin:

    Mainland China

  • HTS Code:

    8541.40.20.00

  • Manufacturer:

    Kingbright

  • YTEOL:

    6

  • Color:

    HYPER RED

  • Color@Wavelength:

    Red

  • Configuration:

    COMMON ANODE, 1 DIGIT WITH DECIMAL POINT

  • Display Height:

    20.32 mm

  • Forward Current-Max:

    0.03 A

  • Number of Functions:

    1

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Optoelectronic Device Type:

    7 SEG NUMERIC LED DISPLAY

SA08-21SURKWA Frequently Asked Questions (FAQs)

  • The recommended storage temperature for SA08-21SURKWA is -20°C to 40°C, with a relative humidity of 60% or less.
  • Yes, SA08-21SURKWA is suitable for outdoor applications, but it's essential to ensure proper sealing and protection from moisture and UV radiation to maintain its performance and lifespan.
  • The maximum soldering temperature for SA08-21SURKWA is 260°C for 3 seconds, with a peak temperature of 240°C. It's essential to follow the recommended soldering profile to avoid damaging the component.
  • Yes, SA08-21SURKWA is compatible with lead-free soldering, but it's crucial to follow the recommended soldering profile and temperature to ensure reliable connections.
  • The typical lifespan of SA08-21SURKWA is around 50,000 hours, depending on the operating conditions, such as temperature, humidity, and current. Proper usage and maintenance can help extend its lifespan.
