SA10-11SRWA - Kingbright

Description: Display Modules - LED Character and Numeric Red 7-Segment 1 Character Common Anode 3.7V 20mA 1.295" H x 0.886" W x 0.335" D (32.90mm x 22.50mm x 8.50mm) 14-DIP (0.600", 15.24mm)

Download SA10-11SRWA Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

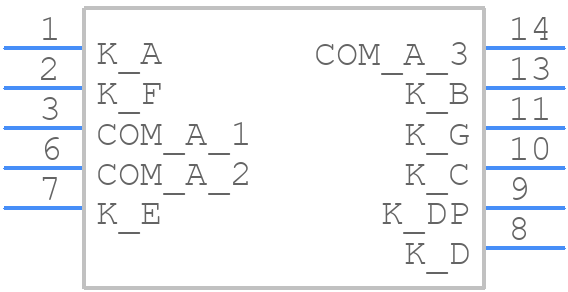

SA10-11SRWA - Kingbright - PCB symbol
click to zoom
PCB Footprints

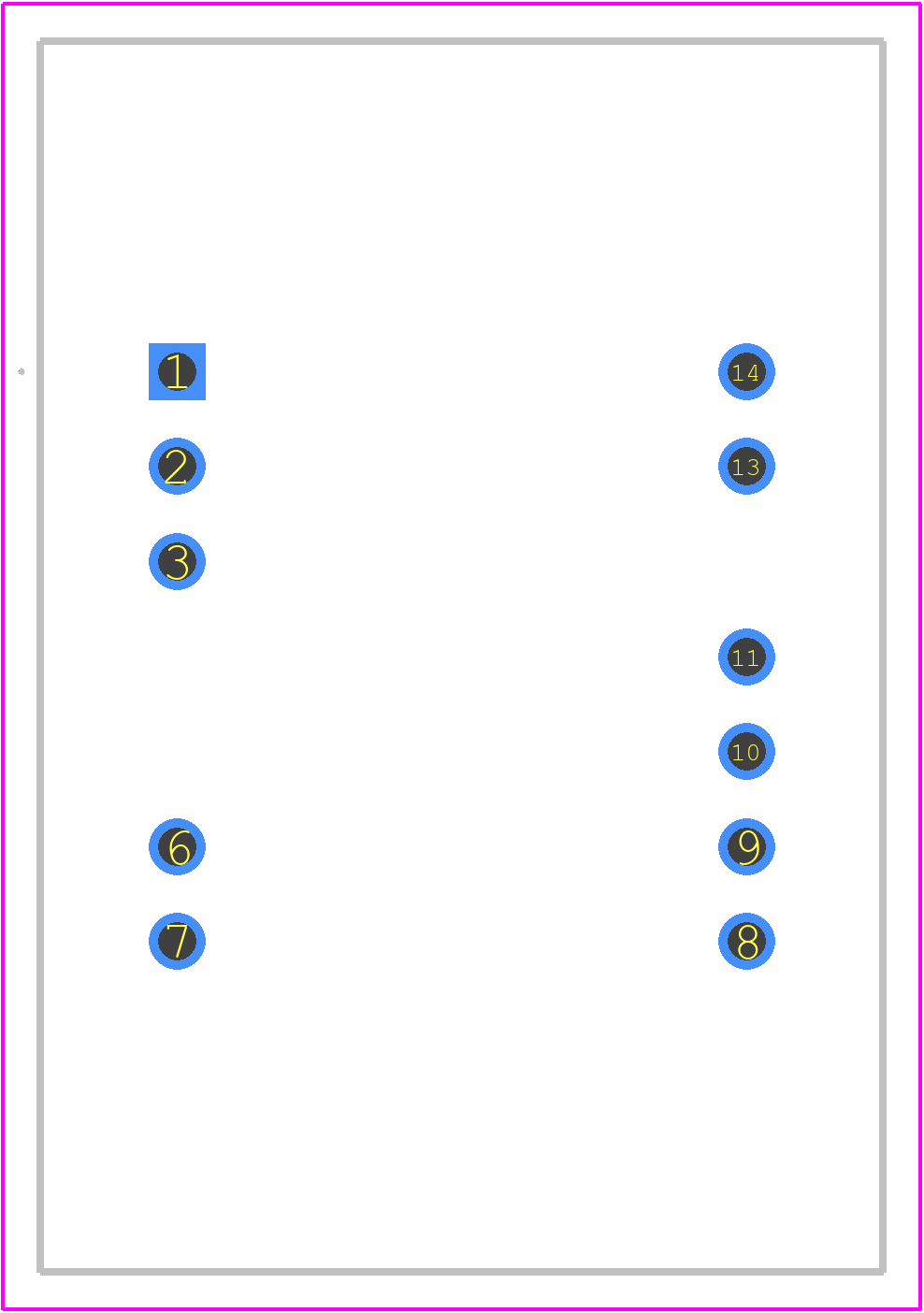

SA10-11SRWA - Kingbright PCB footprint - Other - Other - 14-DIP
click to zoom
3D Models
SA10-11SRWA - Kingbright - 3D model - Other - 14-DIP
click to zoom

SA10-11SRWA Details

  • Manufacturer Part Number:

    SA10-11SRWA

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Transferred

  • Package Description:

    ROHS COMPLIANT PACKAGE-14

  • Country Of Origin:

    Mainland China

  • HTS Code:

    8541.40.20.00

  • Manufacturer:

    Kingbright

  • YTEOL:

    0.4

  • Additional Feature:

    IC COMPATIBLE

  • Color:

    SUPER BRIGHT RED

  • Color@Wavelength:

    Red

  • Configuration:

    COMMON ANODE, 1 DIGIT WITH DECIMAL POINT

  • Display Height:

    26 mm

  • Forward Current-Max:

    0.03 A

  • Forward Voltage-Max:

    2.5 V

  • Number of Characters:

    1

  • Number of Functions:

    1

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Optoelectronic Device Type:

    7 SEG NUMERIC LED DISPLAY

  • Peak Wavelength:

    660 nm

SA10-11SRWA Frequently Asked Questions (FAQs)

  • The recommended storage temperature for SA10-11SRWA is -20°C to 30°C (-4°F to 86°F) to prevent damage to the LED.
  • Yes, the SA10-11SRWA is suitable for outdoor applications, but it's recommended to use a suitable enclosure or coating to protect the LED from moisture and UV radiation.
  • The maximum forward current for SA10-11SRWA is 30mA, but it's recommended to operate at a lower current (e.g., 20mA) for longer lifespan and reliability.
  • Yes, the SA10-11SRWA is compatible with lead-free soldering, but it's recommended to follow the recommended soldering profile to prevent damage to the LED.
  • The typical viewing angle for SA10-11SRWA is 120°, but this can vary depending on the specific application and optical design.
