SA10-21EWA - Kingbright

Description: HE Red 7-segment LED, SA10-21EWA Kingbright SA10-21EWA 7-Segment LED Display, CA Red 23 mcd RH DP 26mm

Download SA10-21EWA Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

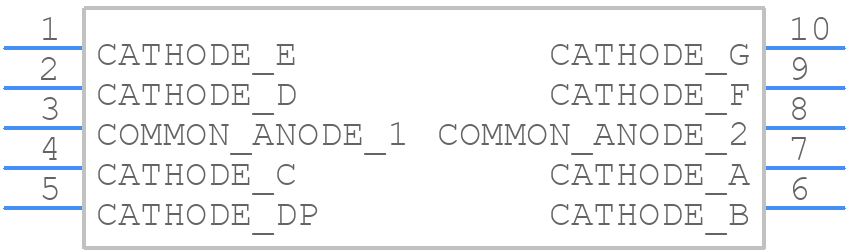

SA10-21EWA - Kingbright - PCB symbol
click to zoom
PCB Footprints

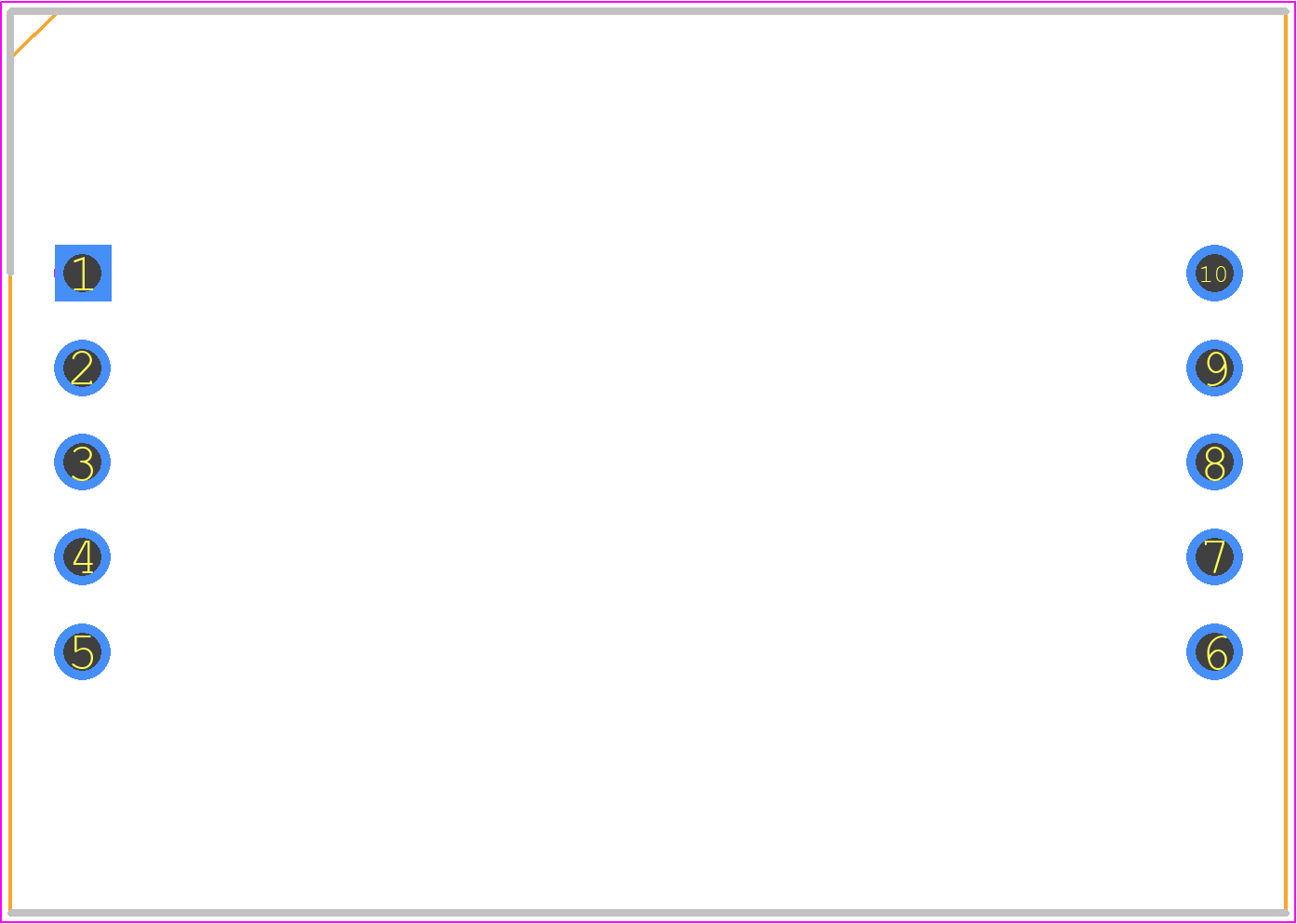

SA10-21EWA - Kingbright PCB footprint - Dual-In-Line Sockets - Dual-In-Line Sockets - 25.4mm (1.0 INCH) SINGLE DIGIT NUMERIC DISPLAY
click to zoom
3D Models
SA10-21EWA - Kingbright - 3D model - Dual-In-Line Sockets - 25.4mm (1.0 INCH) SINGLE DIGIT NUMERIC DISPLAY
click to zoom

SA10-21EWA Details

  • Manufacturer Part Number:

    SA10-21EWA

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Transferred

  • Package Description:

    ROHS COMPLIANT PACKAGE-10

  • Country Of Origin:

    Mainland China

  • HTS Code:

    8541.40.20.00

  • Manufacturer:

    Kingbright

  • YTEOL:

    6

  • Additional Feature:

    IC COMPATIBLE

  • Color:

    HIGH EFFICIENCY RED

  • Color@Wavelength:

    Red

  • Configuration:

    COMMON ANODE, 1 DIGIT WITH DECIMAL POINT

  • Display Height:

    25.4 mm

  • Forward Current-Max:

    0.03 A

  • Number of Characters:

    1

  • Number of Functions:

    1

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Optoelectronic Device Type:

    7 SEG NUMERIC LED DISPLAY

  • Peak Wavelength:

    625 nm

SA10-21EWA Frequently Asked Questions (FAQs)

  • The recommended storage temperature for SA10-21EWA is -20°C to 30°C (-4°F to 86°F) to prevent damage to the LED.
  • Yes, SA10-21EWA is suitable for outdoor applications, but it's recommended to use a suitable enclosure or coating to protect the LED from moisture and UV radiation.
  • The maximum forward current for SA10-21EWA is 30mA, but it's recommended to operate at a lower current (e.g., 20mA) for longer lifespan and reliability.
  • Yes, SA10-21EWA is compatible with lead-free soldering, but the recommended soldering temperature is 260°C (500°F) for a maximum of 10 seconds.
  • The viewing angle of SA10-21EWA is 120°, which means the LED maintains its brightness and color consistency within a 120° angle from the center of the LED.
