SA10-21GWA - Kingbright

Description: KINGBRIGHT - SA10-21GWA - 7 Segment LED Display, Mechanically Rugged, Green, 20 mA, 4.4 V, 24 mcd, 1, 25.4 mm

Download SA10-21GWA Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
SA10-21GWA - Kingbright - PCB symbol
click to zoom
PCB Footprints

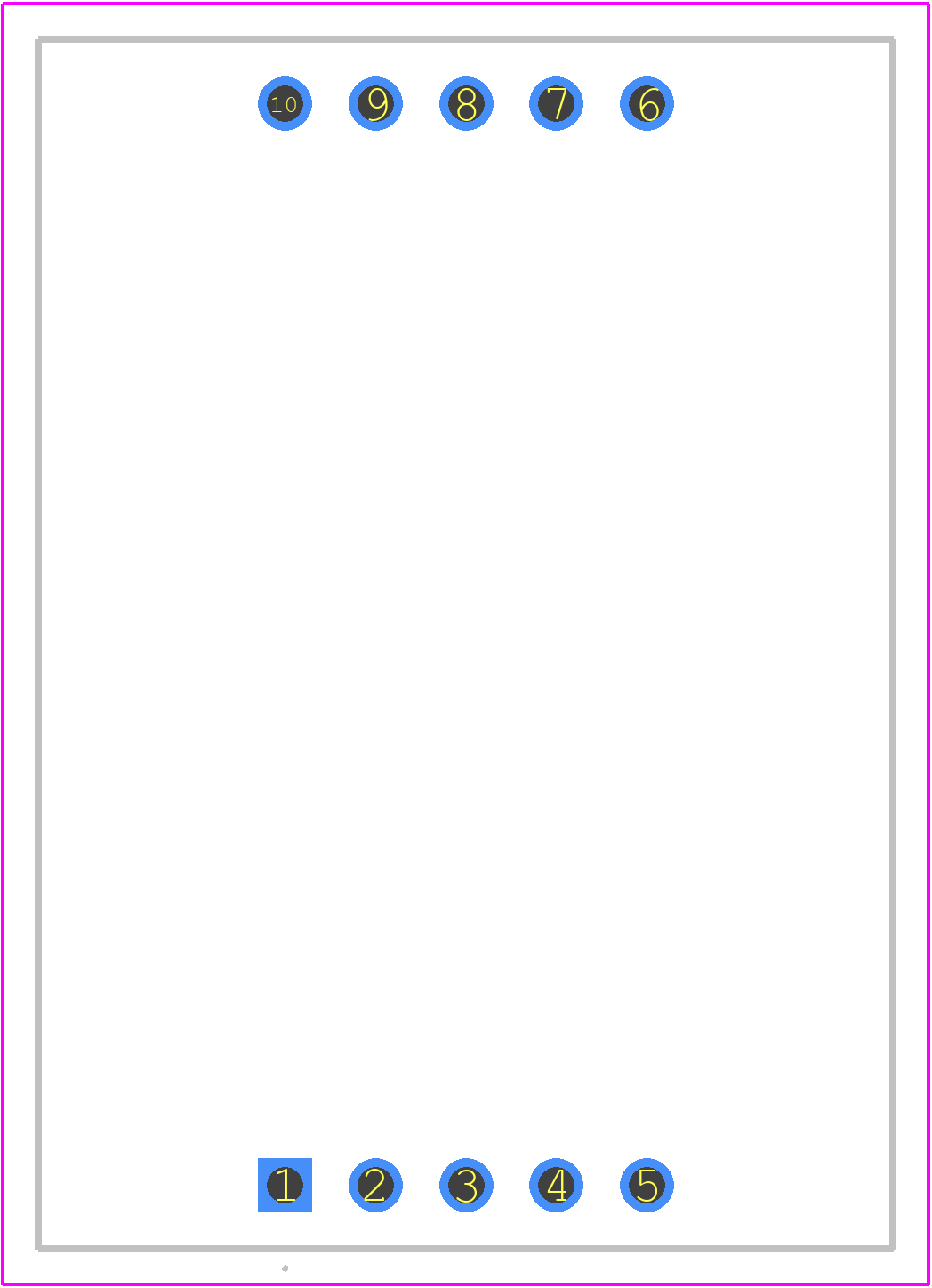

SA10-21GWA - Kingbright PCB footprint - Other - Other - SA10-21GWA-2
click to zoom
3D Models
SA10-21GWA - Kingbright - 3D model - Other - SA10-21GWA-2
click to zoom

SA10-21GWA Details

  • Manufacturer Part Number:

    SA10-21GWA

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Transferred

  • Package Description:

    ROHS COMPLIANT PACKAGE-10

  • Country Of Origin:

    Mainland China

  • ECCN Code:

    EAR99

  • HTS Code:

    8541.40.20.00

  • Manufacturer:

    Kingbright

  • YTEOL:

    6

  • Additional Feature:

    IC COMPATIBLE

  • Color:

    GREEN

  • Color@Wavelength:

    Green

  • Configuration:

    COMMON ANODE, 1 DIGIT WITH DECIMAL POINT

  • Display Height:

    25.4 mm

  • Forward Current-Max:

    0.025 A

  • Number of Characters:

    1

  • Number of Functions:

    1

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Optoelectronic Device Type:

    7 SEG NUMERIC LED DISPLAY

  • Peak Wavelength:

    565 nm

SA10-21GWA Frequently Asked Questions (FAQs)

  • The recommended storage temperature for SA10-21GWA LEDs is -20°C to 30°C, with a relative humidity of 60% or less.
  • Yes, the SA10-21GWA LED is suitable for outdoor applications, but it's recommended to use a suitable enclosure or coating to protect it from moisture and UV radiation.
  • The maximum forward current for the SA10-21GWA LED is 30mA, but it's recommended to use a current of 20mA or less for optimal performance and lifespan.
  • Handle the SA10-21GWA LED by the edges, avoid touching the LED chip or wire bonds, and use an anti-static wrist strap or mat to prevent electrostatic discharge damage.
  • The SA10-21GWA LED is rated for operation up to 85°C, but it's recommended to derate the current and voltage at higher temperatures to prevent degradation and ensure reliability.
