SA15-11EWA - Kingbright

Description: Display Modules - LED Character and Numeric Red 7-Segment 1 Character Common Anode 4V 20mA 1.850" H x 1.306" W x 0.492" D (47.00mm x 33.15mm x 12.50mm) 10-DIP (1.600", 40.64mm)

Download SA15-11EWA Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

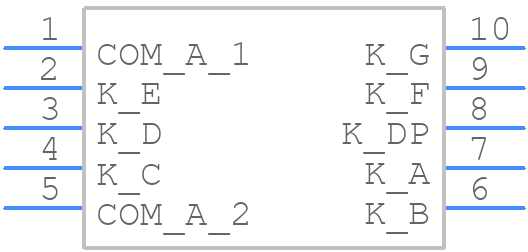

SA15-11EWA - Kingbright - PCB symbol
click to zoom
PCB Footprints

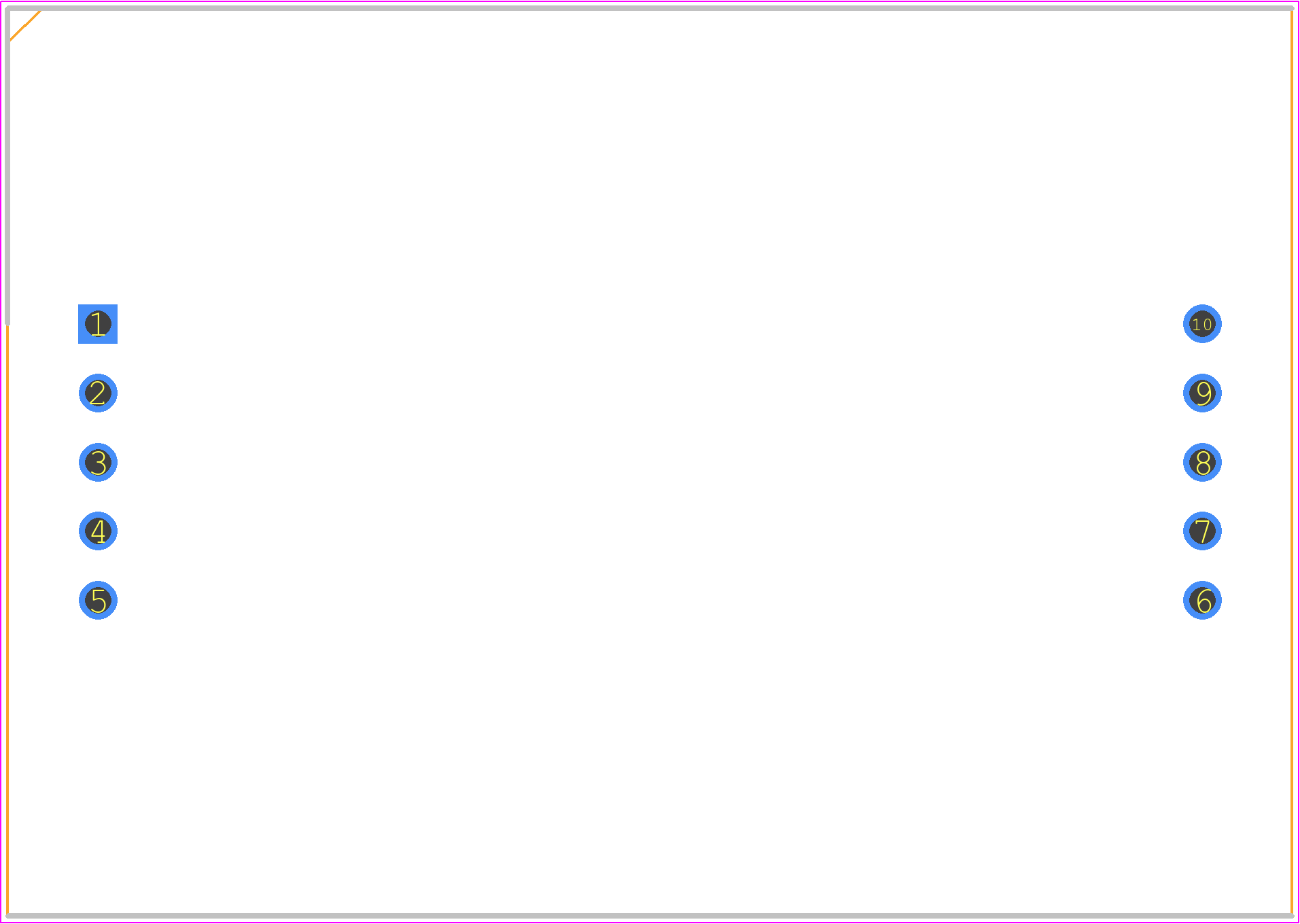

SA15-11EWA - Kingbright PCB footprint - Dual-In-Line Sockets - Dual-In-Line Sockets - 10-DIP_2024
click to zoom
3D Models
SA15-11EWA - Kingbright - 3D model - Dual-In-Line Sockets - 10-DIP_2024
click to zoom

SA15-11EWA Details

  • Manufacturer Part Number:

    SA15-11EWA

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    ROHS COMPLIANT PACKAGE-10

  • Country Of Origin:

    Mainland China

  • HTS Code:

    8541.40.20.00

  • Manufacturer:

    Kingbright

  • YTEOL:

    6

  • Additional Feature:

    IC COMPATIBLE

  • Color:

    HIGH EFFICIENCY RED

  • Color@Wavelength:

    Orange

  • Configuration:

    COMMON ANODE, 1 DIGIT WITH DECIMAL POINT

  • Display Height:

    38.1 mm

  • Forward Current-Max:

    0.03 A

  • Forward Voltage-Max:

    2.5 V

  • Number of Characters:

    1

  • Number of Functions:

    1

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Optoelectronic Device Type:

    7 SEG NUMERIC LED DISPLAY

  • Peak Wavelength:

    625 nm

SA15-11EWA Frequently Asked Questions (FAQs)

  • The recommended storage temperature for SA15-11EWA is -20°C to 30°C (-4°F to 86°F) with a relative humidity of 60% or less.
  • Yes, SA15-11EWA is suitable for outdoor applications, but it's recommended to use a suitable enclosure or coating to protect the LED from moisture and UV radiation.
  • The maximum forward current for SA15-11EWA is 30mA, but it's recommended to operate it at a lower current (e.g., 20mA) for longer lifespan and reliability.
  • Yes, SA15-11EWA is compatible with lead-free soldering, but the recommended soldering temperature is 260°C (500°F) for a maximum of 10 seconds.
  • The typical viewing angle for SA15-11EWA is 120°, but this can vary depending on the specific application and optical design.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

SA15-11EWA Overview

Use the download button to access the SA15-11EWA schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like SA15-, or try a keyword search, such as LED Displays
